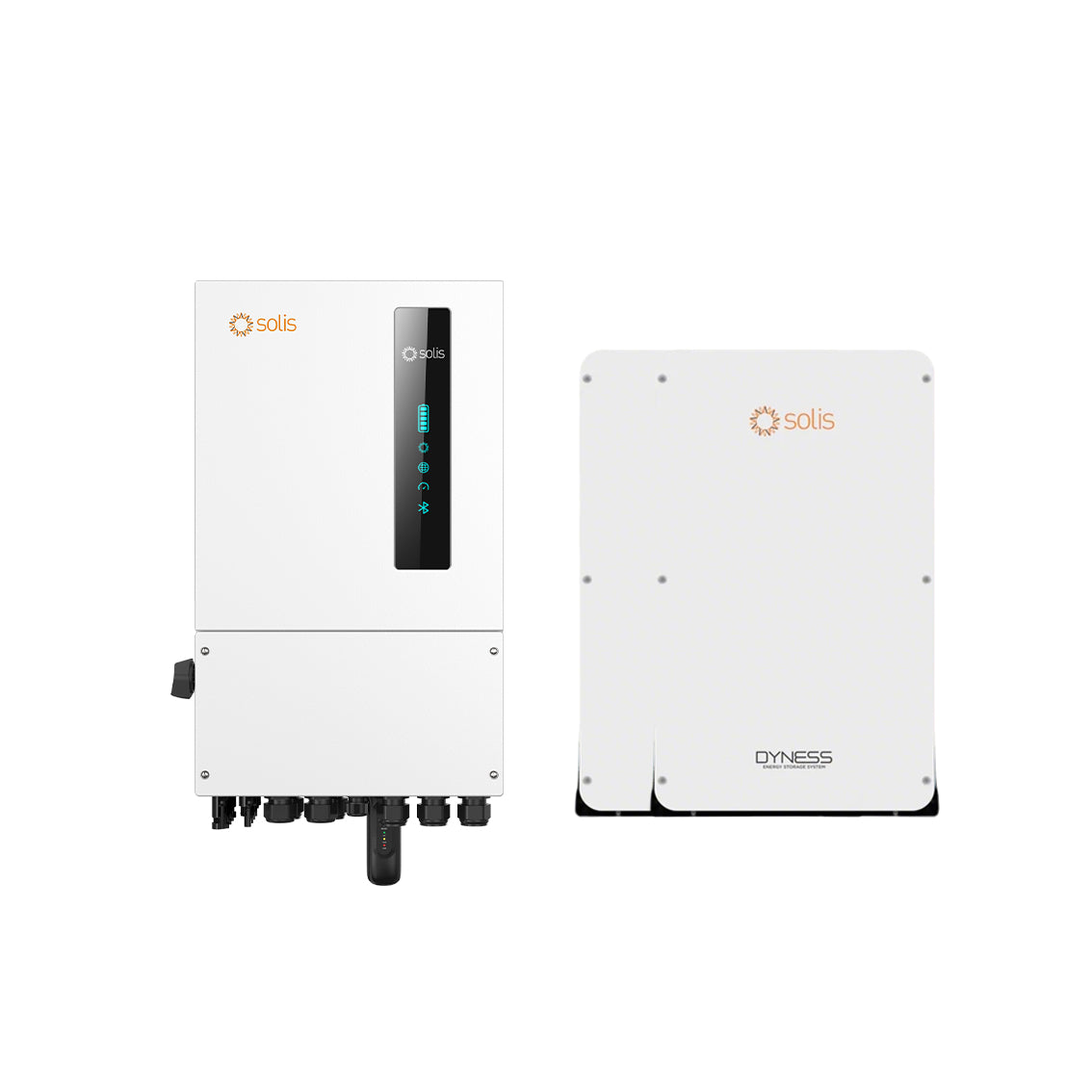

Solis 20.48kWh Powerbox Energy Storage & 8kW Single Phase Hybrid Inverter (IG-SOL-S6-EH1P8K)
Description The Solis S6-EH1P8K-L-PLUS is an 8kW single-phase hybrid inverter designed for residential photovoltaic energy storage systems . It is paired with two Dyness Powerbox-US batteries, providing a total storage capacity of 20.48kWh ....
Vendor:
Ople Appliances
Availability:
In Stock
- $6,799.00
- $6,799.00
- 单价
- 单价
10 customers are viewing this product
厂商： Ople Appliances
Solis 20.48kWh Powerbox Energy Storage & 8kW Single Phase Hybrid Inverter (IG-SOL-S6-EH1P8K)
$6,799.00
厂商： Ople Appliances
Solis 20.48kWh Powerbox Energy Storage & 8kW Single Phase Hybrid Inverter (IG-SOL-S6-EH1P8K)
$6,799.00
Description
xDescription
The Solis S6-EH1P8K-L-PLUS is an 8kW single-phase hybrid inverter designed for residential photovoltaic energy storage systems . It is paired with two Dyness Powerbox-US batteries, providing a total storage capacity of 20.48kWh .
Inverter
The S6 series hybrid inverter features 2 MPPT trackers (supporting up to 4 PV strings), 32A MPPT current input for compatibility with high-power PV panels, and UPS-level switching (<4 ms) for emergency backup power . It supports IP66 protection for outdoor installation and includes 6-stage timed charge/discharge functionality .
Battery
The Dyness Powerbox-US is a low-voltage LiFePO₄ battery. Two units in parallel provide 20.48kWh total storage capacity . Each battery features an integrated Battery Management System (BMS) and IP65 (NEMA 4X) rated enclosure for indoor or outdoor installation .
Key Features
Inverter - S6-EH1P8K-L-PLUS
-
8kW rated output power
-
2 MPPT trackers, supports up to 4 PV strings
-
Supports up to 6 units in parallel (max 48kW single-phase or three-phase system)
-
6-stage timed charge/discharge with configurable charging source
-
Built-in DC switch
Battery - Powerbox-US (20.48kWh total)
-
Safe LiFePO₄ battery chemistry
-
Up to 5 units in parallel (max 50kWh) / Up to 50 units for larger systems
Specifications
S6-EH1P8K-L-PLUS Inverter Specifications
| Parameter | Specification |
|---|---|
| Model | S6-EH1P8K-L-PLUS |
| Inverter Type | Hybrid (Single Phase) |
| Rated Output Power | 8,000 W (8kW) |
| Max Apparent Output Power | 8,000 VA |
| Rated Output Current | 36.4 A (230V) / 34.8 A |
| Number of Phases | Single Phase |
| Rated Grid Voltage | 220V / 230V |
DC Input (PV Side) Parameters
| Parameter | Specification |
|---|---|
| Max Recommended PV Input Power | 12,800 W |
| Max DC Input Voltage | 500 V |
| Start-up Voltage | 90 V |
| MPPT Voltage Range | 90 - 435 V |
| Number of MPPT Trackers | 2 |
| Number of String Inputs | 4 (2 per MPPT) |
| Max Input Current per MPPT | 32 A |
| Max Short Circuit Current per MPPT | 40 A |
Battery Parameters
| Parameter | Specification |
|---|---|
| Battery Type | Lithium-ion / Lead-acid |
| Battery Voltage Range (Low Voltage) | 40 - 60 V |
| Max Charge/Discharge Current | 190 A |
| Communication Protocols | CAN / RS485 |
AC Output (Backup/EPS) Parameters
| Parameter | Specification |
|---|---|
| Rated EPS Output Power | 8,000 W |
| Max Output Power (10s) | 16,000 W (200% overload) |
| EPS Switching Time | <4 ms (UPS level) |
Efficiency Parameters
| Parameter | Specification |
|---|---|
| Maximum Efficiency | 96.2% |
Protection & General Data
| Parameter | Specification |
|---|---|
| Protection Rating | IP66 |
| Dimensions (W × H × D) | 335 × 560 × 227-253 mm |
| Weight | 21.6 - 24 kg |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature Range | -40°C ~ +60°C |
| Noise Emission | <46.9 dB |
| Topology | High frequency isolation |
| Communication Interfaces | RS485, CAN, Bluetooth; Optional: WiFi, 4G, LAN |
| Display | 7-inch LCD / LED indicators |
| DC Connection | MC4 connector |
| AC Connection | Quick connection plug |
Dyness Powerbox-US Battery Specifications
| Parameter | Specification (Per Unit) | System Total (2 Units) |
|---|---|---|
| Model | Powerbox-US | - |
| Nominal Energy | 10.24 kWh | 20.48 kWh |
| Nominal Capacity | - | - |
| Nominal Voltage | 51.2 V | 51.2 V (paralleled) |
| Operating Voltage Range | 44.8 - 57.6 V | - |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) | - |
| Max Continuous Charge/Discharge Current | ≤0.5C (recommended) | - |
| Recommended Depth of Discharge | ≤90% | - |
| Cycle Life | ≥6,000 cycles | - |
| Operating Temperature | -20°C ~ 55°C (discharge) / 0°C ~ 55°C (charge) | - |
| Protection Rating | IP65 / NEMA 4X | - |
| Communication Interfaces | CAN, RS485 | - |
| Dimensions (W × D × H) | 555 × 210 × 928 mm | - |
| Weight | ~99-103 kg | ~198-206 kg |
| Maximum Parallel Units | Up to 5 packs (max 50kWh) / Up to 50 packs for larger systems | - |
| Warranty | 10 years | - |
