Description
xProduct Overview

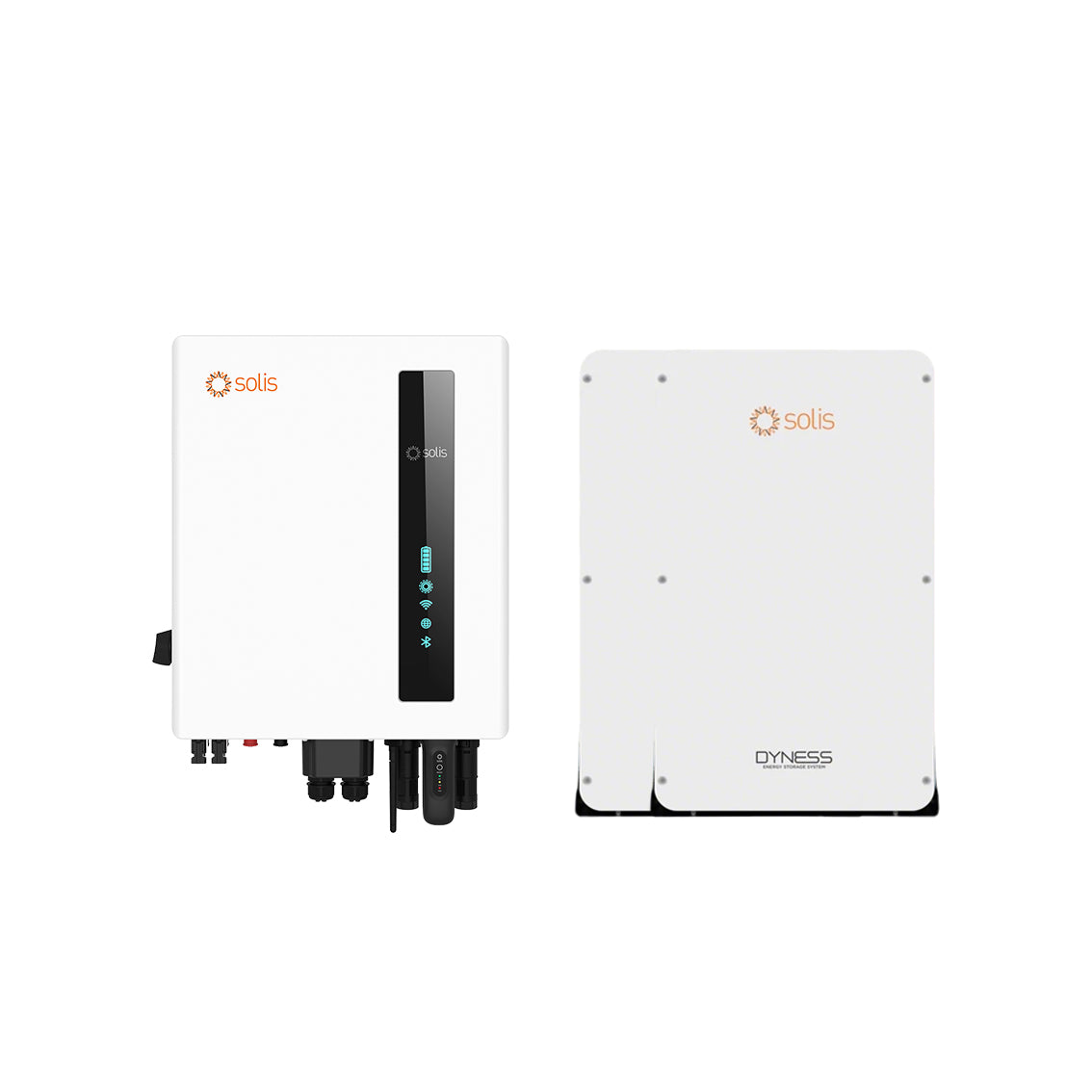

This energy storage system combines the Solis S6-EH1P5K-L-PLUS 5kW single-phase hybrid inverter with two (2) Dyness Powerbox-US 10.24kWh batteries, providing a total storage capacity of 20.48kWh .
The Solis S6-EH1P5K-L-PLUS is a low-voltage hybrid inverter designed for residential PV energy storage systems, featuring seamless integration of solar generation with battery storage and backup power capabilities .
System Composition
| Component | Quantity | Details |
|---|---|---|
| Solis S6-EH1P5K-L-PLUS Hybrid Inverter | 1 unit | 5kW, Single Phase, Low Voltage (40-60V) |
| Dyness Powerbox-US Battery | 2 units | 10.24kWh each |
| Total Storage Capacity | 20.48kWh | Usable: ~17.4 kWh @ 85% DoD |
Key Features
Solis S6-EH1P5K-L-PLUS Hybrid Inverter
-
Hybrid Functionality: Combines solar PV and battery storage in a single unit
-
Uninterruptible Power Supply (UPS): <4ms automatic switch-over to emergency power
-
High PV Input: 32A MPPT current input, ideal for high-power PV panels; 10kW recommended max PV array size
-
Dual MPPT Trackers: 2 independent MPPT inputs for optimal energy harvesting
-
Parallel Operation: Up to 6 inverters can be paralleled to form a microgrid (up to 48kW)
-
Generator Compatible: Works with generators for extended backup power
-
6-Stage Timed Charge/Discharge: Integrated battery management with programmable schedules
-
Smart Monitoring: LCD display and SolisCloud app with Bluetooth connectivity
Dyness Powerbox-US Battery (2 Units = 20.48kWh)
-
Chemistry: Prismatic LiFePO₄ (Lithium Iron Phosphate) for safety and long cycle life
-
BMS: Integrated smart Battery Management System with embedded breaker
-
Installation: Wall or floor mount, NEMA 4X / IP65 enclosure for indoor or outdoor installation
-
CEC Listed: Listed on California Energy Commission Battery List
Technical Specifications
Solis S6-EH1P5K-L-PLUS Inverter Specifications
| Parameter | Specification |
|---|---|
| AC Output (Grid Side) | |
| Rated Output Power | 5,000 W (5kW) |
| Max Apparent Output Power | 5,000 VA |
| Rated Output Current | 21.8 - 22.8 A |
| Number of Phases | Single Phase (L/N/PE) |
| Rated Grid Voltage | 220V / 230V |
| DC Input (PV Side) | |
| Recommended Max PV Array Size | 10,000 W (10kW) |
| Max DC Input Voltage | 500 V |
| Rated Voltage | 330 V |
| Start-up Voltage | 90 V |
| MPPT Voltage Range | 90 - 435 V |
| Max Input Current | 16A per MPPT |
| Number of MPPT Trackers | 2 |
| Number of Strings | 2 |
| Battery Parameters | |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40 - 60 V (Low Voltage) |
| Max Charge / Discharge Current | 112 A |
| Max Charge / Discharge Power | 5,000 W |
| Communication Protocol | CAN / RS485 |
| AC Output (Backup/EPS) | |
| Rated Backup Output Power | 5,000 W |
| Backup Switch Time | <4 ms (UPS level) |
| Max AC Passthrough Current | 40 A |
| Efficiency | |
| Max Efficiency | 96.2% |
| Efficiency EU | 96.1% |
| Protection & General Data | |
| Protection Rating | IP66 |
| Dimensions (W×H×D) | 335 × 560 × 253 mm |
| Weight | 23.0 - 23.8 kg |
| Cooling Method | Natural cooling (fanless) |
| Operating Temperature | -40°C ~ +60°C |
| Max Operating Altitude | 3000 m |
| Display | 7.0" LCD + Bluetooth + App |
| Communication | RS485, CAN; Optional: WiFi, GPRS, LAN |
| Topology | High frequency isolation (for battery) |
| Warranty | 10 years |
Dyness Powerbox-US Battery Specifications (Per Unit)
| Parameter | Specification |
|---|---|
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Energy | 10.24 kWh |
| System Total (2 Units) | 20.48 kWh |
| Usable Energy (85% DoD) | ~17.4 kWh (for 2 units) |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 51.2 V |
| Working Voltage Range | 44.8 - 57.6 V |
| Recommend Output Power | 5.12 kW |
| Max Output Power | 7.68 kW |
| Recommended Charge/Discharge Current | 100 A |
| Max Charge/Discharge Current | 150 A |
| Peak Current (15s) | 200 A |
| Recommended Depth of Discharge (DoD) | 85% |
| Cycle Life | ≥6,000 cycles |
| Operating Temperature (Charge) | 0°C ~ 55°C (32°F ~ 131°F) |
| Operating Temperature (Discharge) | -20°C ~ 55°C (-4°F ~ 131°F) |
| Enclosure Protection | NEMA 4X / IP65 |
| Communication Interfaces | CAN, RS485, RS232 |
| Dimensions (W×D×H) | 555 × 210 × 928 mm (21.85 × 8.27 × 36.54 in) |
| Weight | 103 kg (per unit) |
| Maximum Parallel Units | Up to 5 units (51.2kWh total) |
| Warranty | 10 Years |
| Certifications | UN38.3, UL1973, UL9540A, UL9540 |
| CEC Listed | Yes (CA.gov Battery List) |
Battery Parameter Settings for Solis Inverter
When configuring the Solis inverter with Powerbox-US batteries, set the following parameters on the inverter :
| Parameter | Value |
|---|---|
| Max Charging (Bulk) Voltage | 57.6 V |
| Absorption Voltage | 56.5 V |
| Float Voltage | 56.0 V |
| Shutdown (Cut-off) Voltage | 48.0 V |
-
Long-term continuous charging/discharging current should be ≤0.5C (≤100A for Powerbox-US)
-
Recommended maximum DoD should be ≤90%
-
If battery is empty, recharge within 48 hours
