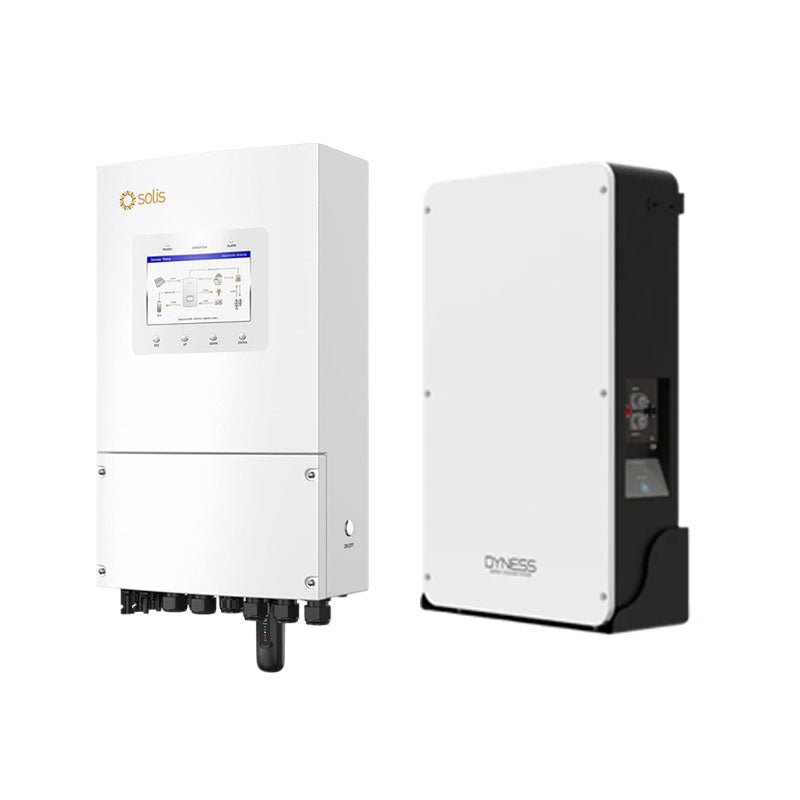

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 5kW Single Phase Hybrid Inverter (SOL-S6-EH1P5K-L-AU)
Description The Solis S6-EH1P5K-L-AU is a 5kW single-phase hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery. This combination is suitable...
Vendor:
Ople Appliances
Availability:
In Stock
- $7,099.00
- $7,099.00
- 单价
- 单价
10 customers are viewing this product
厂商： Ople Appliances
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 5kW Single Phase Hybrid Inverter (SOL-S6-EH1P5K-L-AU)
$7,099.00
厂商： Ople Appliances
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 5kW Single Phase Hybrid Inverter (SOL-S6-EH1P5K-L-AU)
$7,099.00
Description
xDescription
The Solis S6-EH1P5K-L-AU is a 5kW single-phase hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery. This combination is suitable for Australian energy storage applications, with the battery listed on the CEC approved batteries list.
Inverter
The Solis S6 series energy storage inverter is designed for residential PV energy storage systems with IP66 protection rating. It features dual MPPT trackers for optimized solar harvesting.
Battery
The Dyness Powerbox Pro is a low-voltage battery using safe LiFePO₄ chemistry designed for residential energy storage systems. The battery perfectly matches Solis inverters for simple plug-and-play installation. It features prismatic cells with a built-in advanced BMS.
Key Features
Inverter - S6-EH1P5K-L-AU
-
Compatible with low-voltage batteries (42-58V range)
Battery - Powerbox Pro (10.24kWh)
Specifications
S6-EH1P5K-L-AU Inverter Specifications
| Parameter | Specification |
|---|---|
| Nominal Output Power AC | 5,000 W (5kW) |
| Max Input Power DC | 8,000 W (8kW) |
| Output Phases | Single Phase |
| Protection Rating | IP66 |
| Max Input Voltage DC | 600 V |
| Max Input Current DC | 16 A |
| Number of MPPT Inputs | 2 |
| Width | 405 mm |
| Height | 480 mm |
| Depth | 205 mm |
| Weight | 24 kg |
| Warranty | 120 months (10 years) |
Powerbox Pro Battery Specifications
| Parameter | Specification |
|---|---|
| Product Model | Powerbox Pro |
| Nominal Battery Energy | 10.24 kWh |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 44.8 - 57.6 V |
| Usable Energy | 9.728 kWh |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Cell Type | Prismatic |
| Max Continuous Current | 100 A |
| Nominal Power | 5.12 kW |
| Peak Power | 10.24 kW |
| Recommended Depth of Discharge | 90% |
| Recommended C-Rate | 0.5C |
| Cycle Life | ≥6,000 cycles |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 55°C |
| Protection Rating | IP65 |
| Communication Interfaces | CAN, RS485, RS232 |
| Dimensions (W × D × H) | 555 × 210 × 928 mm |
| Weight | 103 kg / 99.3 kg |
| Maximum Parallel Units | Up to 5 (51.2kWh) |
| Certifications | CEC, CE, EMC, RCM, UN38.3, IEC |
