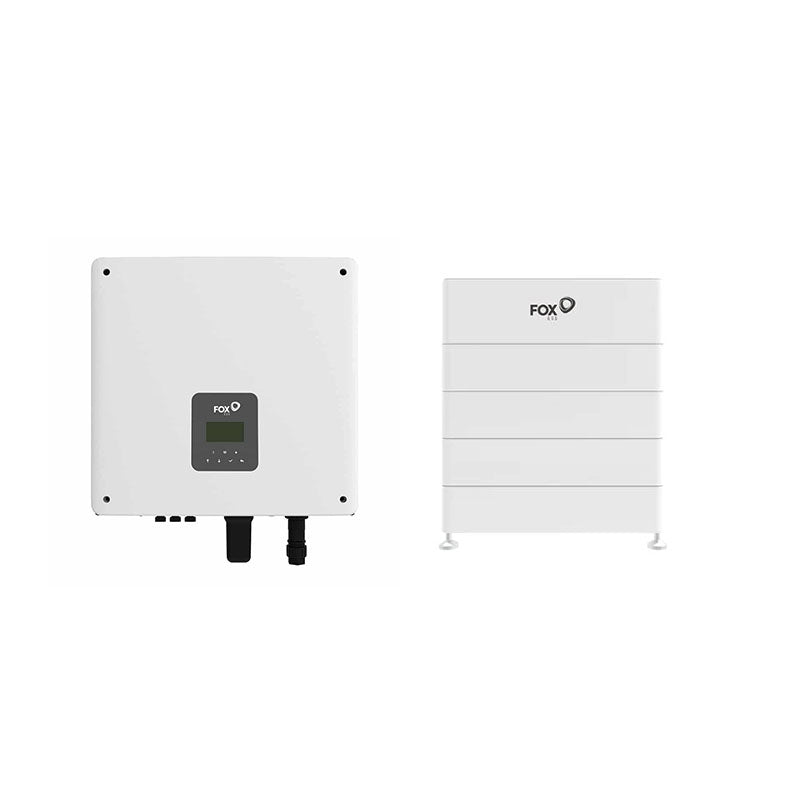

FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

Description The Fox ESS H1-5.0-E-G2 is a second-generation single-phase hybrid inverter paired with the CQ6 high-voltage battery storage system, delivering a compact and scalable energy solution for residential applications . The...
Vendor: Ople Appliances
Availability: In Stock
$7,499.00
$7,499.00
Service: Product & Installation
Options: 17.97kWh CQ6 Energy Storage
咨询专家
10 customers are viewing this product

FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

Ople Appliances

FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

$7,499.00
FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

Ople Appliances

FoxESS 5.99kWh CQ6 Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)

$7,499.00
Service: Product & Installation
Options: 17.97kWh CQ6 Energy Storage
Description
Description
x

Description

The Fox ESS H1-5.0-E-G2 is a second-generation single-phase hybrid inverter paired with the CQ6 high-voltage battery storage system, delivering a compact and scalable energy solution for residential applications .

The H1-G2 series features 2 MPPT trackers, IP65 protection for outdoor installation, and natural cooling for quiet operation. The CQ6 battery employs a modular high-voltage architecture with a stackable design, offering more than 95% round-trip efficiency and 100% depth of discharge .

Key Features

Inverter - H1-5.0-E-G2

  • 2 MPPT trackers with 2 string inputs for optimized solar harvesting
  • Built-in EPS (Emergency Power Supply) function with <20ms switchover time for backup during grid outages
  • IP65 rated for outdoor or indoor installation
  • Natural cooling design - no noisy fans (<35 dB)
  • WiFi connectivity included; optional LAN/4G modules
  • AFCI arc fault protection (optional)
  • 10-year warranty

Battery - CQ6 (5.99kWh)

  • 5.99kWh per module
  • 95% round-trip efficiency, 90% depth of discharge
  • Stackable modular design for flexible expansion
  • CAN communication interface
  • IP65 rated enclosure
  • Compatible with H1-G2, KH/HA, and H3 Series inverters

Specifications

H1-5.0-E-G2 Inverter Specifications

Parameter Specification
Rated AC Output Power 5,000 W
Max AC Output Power 5,000 W
Max AC Apparent Power 6,000 VA
Rated AC Output Current 22.7 A
Max AC Output Current 25.0 A
Number of Phases Single Phase
Rated Grid Voltage 220/230/240 V
Rated Frequency 50/60 Hz
Max DC Input Power (PV) 7,500 W
Max DC Input Voltage 600 V
Start-up Voltage 75 V~120 V
MPPT Voltage Range 80 - 550 V
Number of MPPT Trackers 2
Number of String Inputs 2
Max Input Current per MPPT 16 A
Battery Voltage Range 80 - 480 V
Max Battery Charge/Discharge Current 40 A
Max Efficiency 98.50%
European Efficiency 97.04%
EPS Switch Time < 20 ms
EPS Output Power 5,000 VA
Protection Rating IP65
Dimensions (W × H × D) 434 × 418 × 185 mm
Weight 22 kg
Cooling Method Natural convection (fanless)
Noise Emission < 35 dB
Operating Temperature -25°C ~ +60°C
Communication Interfaces RS485, CAN, WiFi (standard), LAN/4G (optional), USB, DRM
Warranty 10 years

CQ6 Battery Specifications (Per Module)

Parameter Specification
Model CQ6-S
Nominal Energy 5.99 kWh
Nominal Capacity 104 Ah
Nominal Voltage 57.6 V
Battery Voltage Range 52.2 ~ 65.7 V
Battery Type Lithium (LFP)
Round-Trip Efficiency >95%
Depth of Discharge 90%-100%
Max Charge/Discharge Current 100 A
Recommended Charge/Discharge Current 50 A
Peak Discharge Current (60s) 120 A
Cycle Life ≥6,000 cycles
Operating Temperature (Charge/Discharge) 0°C ~ 55°C / -10°C ~ 55°C
Storage Temperature -10°C ~ 50°C
Dimensions (L × W × H) 660 × 360 × 190 mm
Weight 48.8 kg ±5%
IP Rating IP65
Communication Interface CAN
Max Altitude ≤2000 m
Humidity 5~95% (No Condensing)
