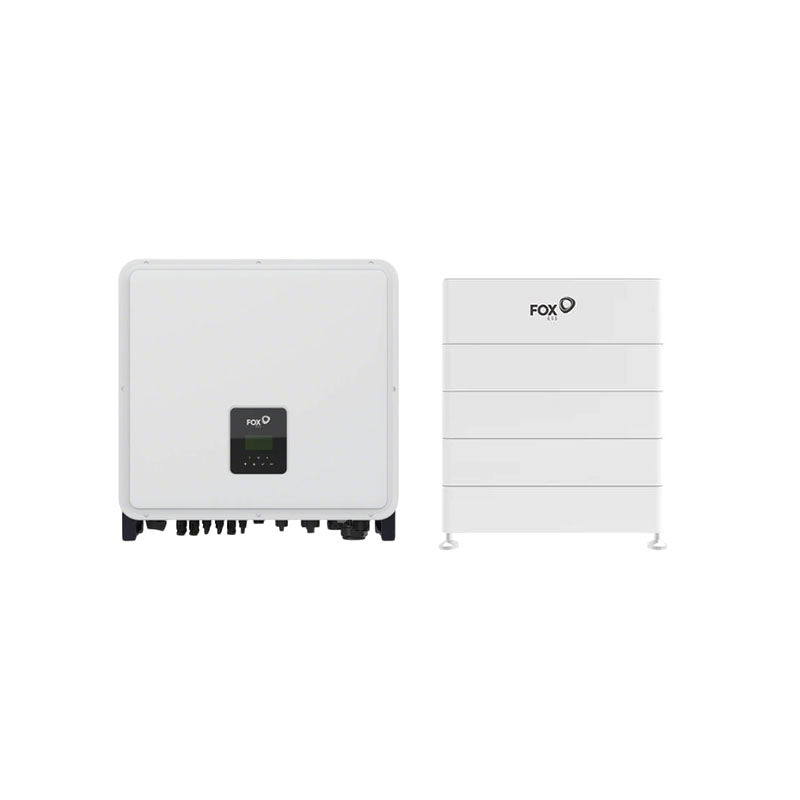

FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

Description The Fox ESS H3 PRO-15.0 is a three-phase hybrid inverter rated at 15kW, paired with the CQ6 high-voltage battery storage system. The H3 PRO series is designed for larger...
Vendor: Ople Appliances
Availability: In Stock
$9,399.00
$9,399.00
Service: Product & Installation
Options: 17.97kWh CQ6 Energy Storage
咨询专家
10 customers are viewing this product

FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

Ople Appliances

FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

$9,399.00
FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

Ople Appliances

FoxESS 5.99kWh CQ6 Energy Storage & 15kW Three Phase Hybrid Inverter (H3 PRO-15.0)

$9,399.00
Service: Product & Installation
Options: 17.97kWh CQ6 Energy Storage
Description
Description
x

Description

The Fox ESS H3 PRO-15.0 is a three-phase hybrid inverter rated at 15kW, paired with the CQ6 high-voltage battery storage system. The H3 PRO series is designed for larger residential and commercial applications, featuring 3 MPPT trackers, dual independent battery inputs, IP65 protection for outdoor installation, and full three-phase emergency power capability with <10ms switchover time .

The CQ6 battery employs a modular high-voltage architecture with a stackable design. Each module provides 5.99kWh capacity, with 1 module forming a total system capacity of 5.99kWh .

Key Features

Inverter - H3 PRO-15.0

  • 3 MPPT trackers with 2 strings per MPPT (6 total string inputs)

  • Dual independent battery inputs for flexible storage configuration

  • Full three-phase EPS (Emergency Power Supply) with <10ms switchover time

  • IP65 rated for outdoor installation

  • Built-in Wi-Fi and LAN connectivity; optional 4G

  • Smart meter and WiFi dongle included

  • 10-year warranty

Battery - CQ6 (5.99kWh)

  • 5.99kWh per module
  • 95% round-trip efficiency, 100% depth of discharge

  • Stackable modular design for flexible expansion

  • CAN communication interface

  • IP65 rated enclosure

Specifications

H3 PRO-15.0 Inverter Specifications

Parameter Specification
Rated AC Output Power 15,000 W
Max Apparent AC Output Power 16,500 VA
Rated Output Current (per phase) 25.0 A
Number of Phases Three Phase (3L/N/PE)
Rated Grid Voltage 380/220V, 400/230V, 415/240V
Rated Grid Frequency 50/60 Hz ±5
Max DC Input Power (PV) 22,500 - 30,000 W
Max DC Input Voltage 1,000 V
Start-up Voltage 160 V
MPPT Voltage Range 150 - 850 V
Number of MPPT Trackers 3
Strings per MPPT 2 (total 6 string inputs)
Max Input Current per MPPT 16 A + 16 A
Max Short Circuit Current per MPPT 20 A + 20 A
Max Efficiency 98.5%
European Efficiency 97.2% - 97.3%
MPPT Tracking Efficiency 97.8%
Battery Voltage Range 150 - 800 V
Max Battery Charge/Discharge Current 50 A + 50 A (two battery inputs)
EPS Switch Time < 10 ms
Protection Rating IP65
Dimensions (H × W × D) 560 × 600 × 225 mm
Weight 52.5 kg
Cooling Method Convection with intelligent fan
Noise Emission < 45 dB
Operating Temperature -25°C ~ +60°C
Communication Interfaces WiFi (standard), LAN (standard), RS485, CAN, USB, DRM, 4G (optional)
Warranty 10 years

CQ6 Battery Specifications (Per Module)

Parameter Specification
Nominal Energy 5.99 kWh
System Total (1 module) 5.99 kWh
Battery Type Lithium (LFP)
Round-Trip Efficiency >95%
Depth of Discharge 100%
Operating Temperature -25°C ~ 55°C
Storage Temperature -10°C ~ 50°C
Dimensions (per module) 660 × 360 × 420 mm
IP Rating IP65
Communication Interface CAN
