FoxESS 27.84kWh CQ7 Energy Storage & 9.9kW Three Phase Hybrid Inverter (3p 9.9kW)
Description The FoxESS 27.84kWh CQ7 Energy Storage System combined with the H3 Series 10kW Three Phase Hybrid Inverter is a complete high-voltage three-phase residential and light commercial energy solution. The...
Vendor:
Ople Appliances
Availability:
In Stock
- $7,499.00
- $7,499.00
- 单价
- 单价
10 customers are viewing this product
厂商： Ople Appliances
FoxESS 27.84kWh CQ7 Energy Storage & 9.9kW Three Phase Hybrid Inverter (3p 9.9kW)
$7,499.00
厂商： Ople Appliances
FoxESS 27.84kWh CQ7 Energy Storage & 9.9kW Three Phase Hybrid Inverter (3p 9.9kW)
$7,499.00
Description
xDescription

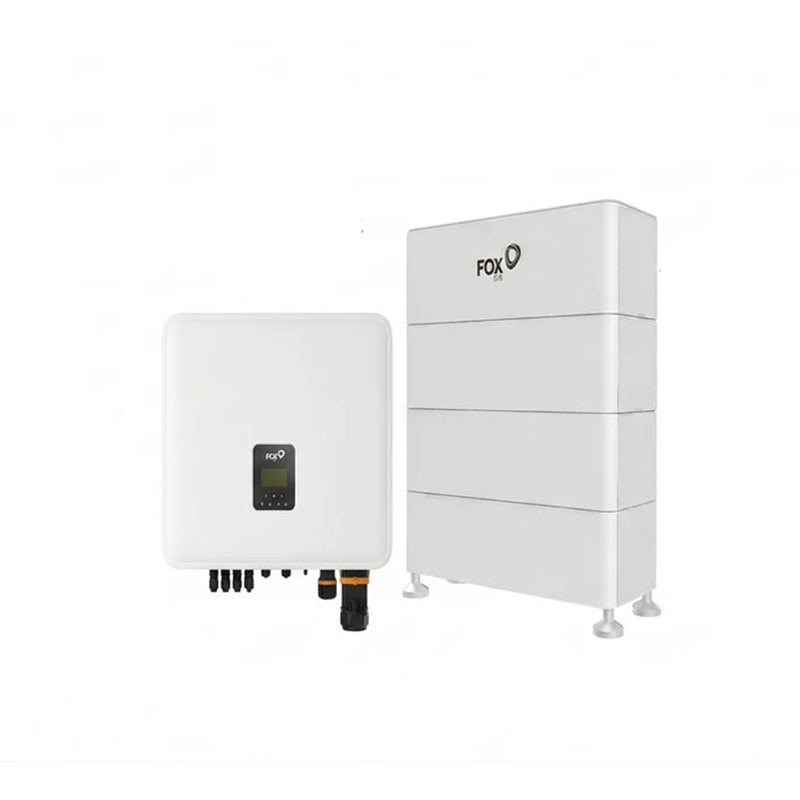

The FoxESS 27.84kWh CQ7 Energy Storage System combined with the H3 Series 10kW Three Phase Hybrid Inverter is a complete high-voltage three-phase residential and light commercial energy solution. The system consists of the modular CQ7 series high-voltage battery pack (expandable to 27.84kWh or higher) paired with a powerful 10kW three-phase hybrid inverter, supporting intelligent management of PV generation, battery storage, and grid on-grid/off-grid switching.
The CQ7 battery system features a modular stackable design, consisting of a Master control unit (CQM) and Slave expansion units (CQS), allowing for flexible capacity expansion up to 49.14kWh . Paired with the H3-10.0-E three-phase hybrid inverter, the system enables PV energy storage, peak/off-peak tariff arbitrage, and emergency backup power during outages.
Key Features
Energy Storage System (CQ7 Battery)
- Modular & Expandable: The CQ7 system consists of 1 Master unit (CQM) and up to 6 Slave units (CQS). Minimum configuration requires 2 units (1 CQM + 1 CQS), maximum supports 7 units, with capacity ranging from 14.04kWh to 49.14kWh
- Safe LiFePO₄ Technology: Uses high-safety Lithium Iron Phosphate (LiFePO₄) cells, offering excellent thermal stability and cycle life
- High-Voltage Architecture: Compatible with modern high-voltage three-phase hybrid inverters
- Deep Discharge Capability: Supports high Depth of Discharge (DoD), maximizing usable capacity
- High Protection Rating: IP65 rating, suitable for both indoor and outdoor installation
- Remote Monitoring: Monitor system performance via smartphone App or web portal (FoxCloud V2.0)
Inverter (H3-10.0-E / Three Phase Hybrid Inverter)
- High Efficiency: Max efficiency of 98.00%, Euro efficiency of 97.30%
- Dual MPPT Design: Features 2 independent MPPT trackers (2 strings per MPPT on H3-10.0-E), adaptable to complex roof orientations
- Wide Input Voltage Range: MPPT operating voltage range of 160-950V, rated input voltage of 720V
- Advanced Battery Management: Built-in BMS communication interface (CAN/RS485) for seamless battery integration
- High Battery Efficiency: Max battery charge efficiency of 98.5% (PV to Battery) and discharge efficiency of 97% (Battery to AC)
- EPS Emergency Backup: Supports Emergency Power Supply output in off-grid mode with <20ms switch time
- IP65 Full Protection: Natural convection cooling for H3-5.0 to H3-8.0 models; fan cooling for H3-10.0 and above
- Wide Operating Temperature: -25℃ to +60℃ operating range (derating at 45℃)
- Complete Protection Features: Includes insulation monitoring, residual current monitoring, DC reverse polarity protection, anti-islanding protection, AC short-circuit protection, DC Type II and AC Type II SPD
Specifications
CQ7 Battery System Specifications
| Specification | Parameter |
|---|---|
| Model | CQ7 Series (CQM Master + CQS Expansion) |
| Brand | Fox ESS |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Single Module Energy | Approx. 7.02 kWh |
| Minimum Configuration Capacity | 14.04 kWh (1 CQM + 1 CQS) |
| Maximum Configuration Capacity | 49.14 kWh (1 CQM + 6 CQS) |
| Target Configuration Capacity | 27.84 kWh (approx. 1 CQM + 3 CQS) |
| Protection Rating | IP65 |
| Communication Protocols | CAN / RS485 |
| Installation Type | Floor-standing, stackable |
H3-10.0-E Three Phase Hybrid Inverter Specifications
PV Input Specifications
Battery Specifications
