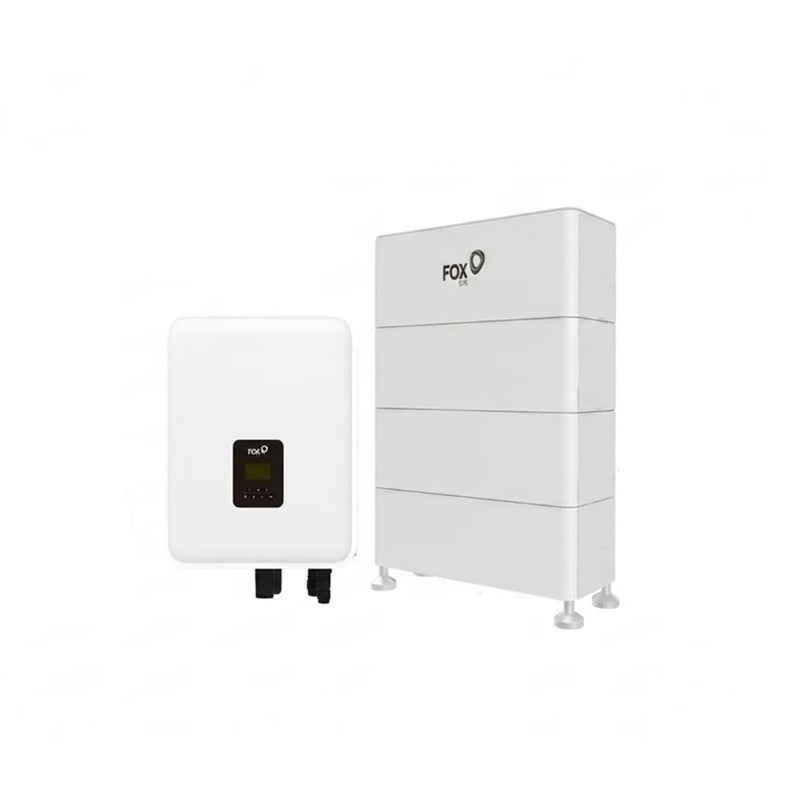

FoxESS 27.84kWh CQ7 Energy Storage & 8kW Single Phase Hybrid Inverter (1p 8kW)
Product Description The FoxESS CQ7 Energy Storage System combined with the KH/KA Series 8kW Single Phase Hybrid Inverter is a high-voltage modular energy solution designed specifically for residential use. The...
Vendor:
Ople Appliances
Availability:
In Stock
- $7,099.00
- $7,099.00
- 单价
- 单价
10 customers are viewing this product
厂商： Ople Appliances
FoxESS 27.84kWh CQ7 Energy Storage & 8kW Single Phase Hybrid Inverter (1p 8kW)
$7,099.00
厂商： Ople Appliances
FoxESS 27.84kWh CQ7 Energy Storage & 8kW Single Phase Hybrid Inverter (1p 8kW)
$7,099.00
Description
xProduct Description
The FoxESS CQ7 Energy Storage System combined with the KH/KA Series 8kW Single Phase Hybrid Inverter is a high-voltage modular energy solution designed specifically for residential use. The system consists of the CQ7 series high-voltage battery pack (configurable capacity, supporting up to 27.84kWh) and the KH1-8.0 single-phase hybrid inverter, supporting intelligent management of PV generation, battery storage, and grid on-grid/off-grid switching.
The CQ7 battery system features a modular stackable design, consisting of a Master control unit (CQM) and Slave expansion units (CQS), allowing for flexible capacity expansion. Paired with the 8kW hybrid inverter, the system enables PV energy storage, peak/off-peak tariff arbitrage, and emergency backup power during outages — ideal for residential users seeking high self-consumption rates.
Founded in 2019, Fox ESS is a subsidiary of Tsingshan Holding Group (a Fortune Global 500 company), focusing on the R&D, production, and sales of inverters and lithium batteries.
Key Features
Energy Storage System (CQ7 Battery)
- Modular & Expandable: The CQ7 system consists of 1 Master unit (CQM) and up to 6 Slave units (CQS). Minimum configuration requires 2 units (1 CQM + 1 CQS), maximum supports 7 units (1 CQM + 6 CQS), with capacity ranging from 14.04kWh to 49.14kWh.
- Safe LiFePO₄ Technology: Uses high-safety Lithium Iron Phosphate (LiFePO₄) cells, offering excellent thermal stability and cycle life.
- High-Voltage Architecture: Recommended operating voltage of 300V DC, with a voltage range of 85-480V DC, compatible with modern high-voltage hybrid inverters.
- Deep Discharge Capability: Supports 90% Depth of Discharge (DoD), maximizing usable capacity.
- High Protection Rating: IP65 rating, suitable for both indoor and outdoor installation.
Inverter (KH1-8.0 / 8kW Single Phase Hybrid)
- Hybrid Inverter Design: Supports intelligent coordination between PV, battery, grid, and loads. Can be configured as AC-coupled or DC-coupled; the battery storage system can be used independently even without PV panels.
- High Conversion Efficiency: Maximum efficiency of 97.8%, MPPT tracking efficiency of 99.9%.
- Multi-MPPT Design: Features 3 independent MPPT trackers (each MPPT connects to 1 PV string), adaptable to complex roof orientations.
- Wide Input Voltage Range: MPPT operating voltage range of 80-500V, startup voltage of 75V — low startup voltage extends daily power generation window.
- Advanced Battery Management: Built-in BMS communication interface (CAN/RS485), supports battery charge/discharge current of 50A each.
- Smart Monitoring: Remote monitoring and system management via Fox ESS mobile App or web portal (FoxCloud V2.0).
- IP65 Full Protection: Natural convection cooling, no internal fan — low noise and high reliability.
- EPS Emergency Backup: Supports Emergency Power Supply output in off-grid mode (requires EPS interface).
Specifications
CQ7 Battery System Specifications
| Specification | Parameter |
|---|---|
| Model | CQ7 Series (CQM Master + CQS Expansion) |
| Brand | FoxESS (Fox-ess) |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Single Module Energy | Approx. 7.02 kWh |
| Minimum Configuration Capacity | 14.04 kWh (1 CQM + 1 CQS) |
| Maximum Configuration Capacity | 49.14 kWh (1 CQM + 6 CQS) |
| Target Configuration Capacity | 27.84 kWh (approx. 1 CQM + 3 CQS) |
| Nominal Voltage | Varies by configuration (high-voltage system) |
| Battery Voltage Range | 85-480V DC (matched to inverter) |
| Recommended Operating Voltage | 300V DC |
| Max Charge/Discharge Current | 50A each |
| Operating Temperature (Charging) | 0 ~ 55℃ |
| Operating Temperature (Discharging) | -10 ~ 55℃ |
| Protection Rating | IP65 |
| Communication Protocols | CAN / RS485 |
| Installation Type | Floor-standing, stackable |
| Safety Certifications | IEC 62109-1/2, IEC 62477-1, CE |
KH1-8.0 8kW Single Phase Hybrid Inverter Specifications
| Specification | Parameter |
|---|---|
| Model | Fox ESS KH1-8.0 (KH/KA Series) |
| Output Power | 8,000 VA (rated) / 8,800 VA (max) |
| Output Phase | Single Phase |
| Rated Grid Voltage | 220/230/240V AC (range 180-270V) |
| Rated Output Current | 34.8A (max 38.3A) |
| Max Recommended PV Input | 12,000W DC |
| Max PV Voltage | 600V DC |
| MPPT Voltage Range | 80-500V DC |
| Startup Voltage | 75V DC |
| Number of MPPT Trackers | 3 (1 PV string per MPPT) |
| Max Input Current per MPPT | Approx. 18A |
| Battery Type | Lithium-ion (high-voltage battery) |
| Battery Voltage Range | 85-480V DC (recommended 300V DC) |
| Max Charge/Discharge Current | 50A each |
| Maximum Efficiency | 97.8% |
| MPPT Efficiency | 99.9% |
| PV to Battery Efficiency | 98.5% |
| Battery to AC Efficiency | 97.0% |
| Protection Rating | IP65 (indoor/outdoor installation) |
| Cooling Method | Natural convection (fanless) |
| Communication Interfaces | WiFi, RS485, DRM, USB, CT, optional 4G |
| Battery Communication | CAN / RS485 |
| Dimensions (approx.) | 380 × 440 × 167mm (varies slightly by model) |
| Weight (approx.) | 19-29kg (depending on model) |
| Noise Level | <30 dB |
| Certifications | IEC 62109-1/2, IEC 62477-1, EN 61000-6-1/-2/-3, G99 (UK grid) |
| Installation Method | Wall-mounted |
| Warranty | 10 years (based on available channel information) |
