Description
xDescription

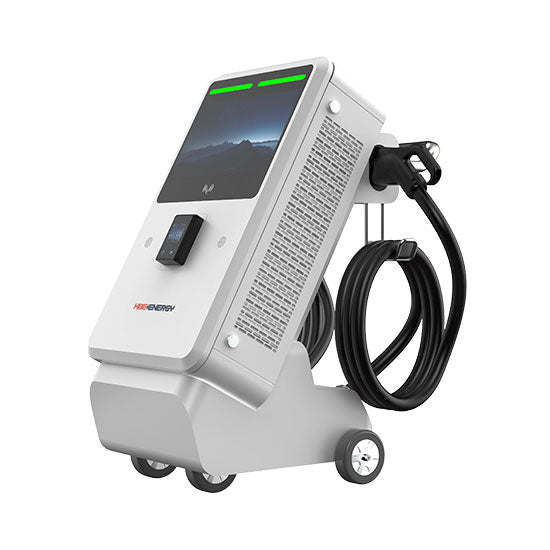

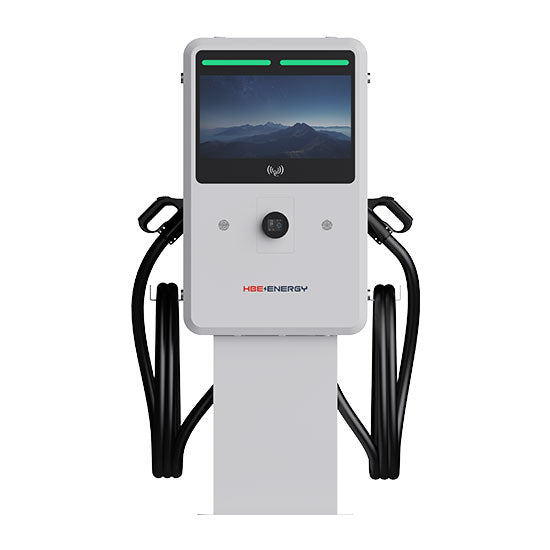

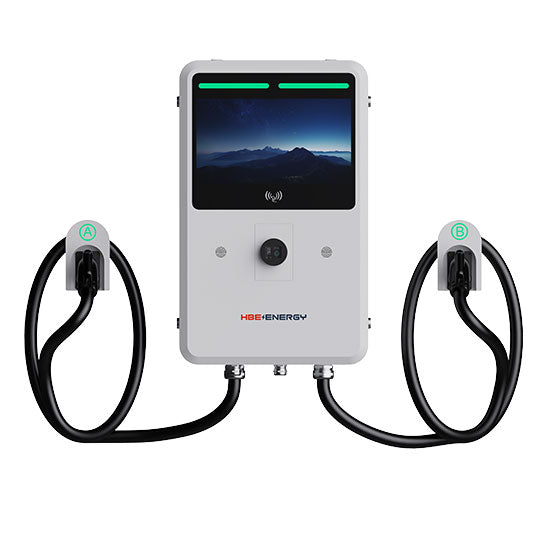

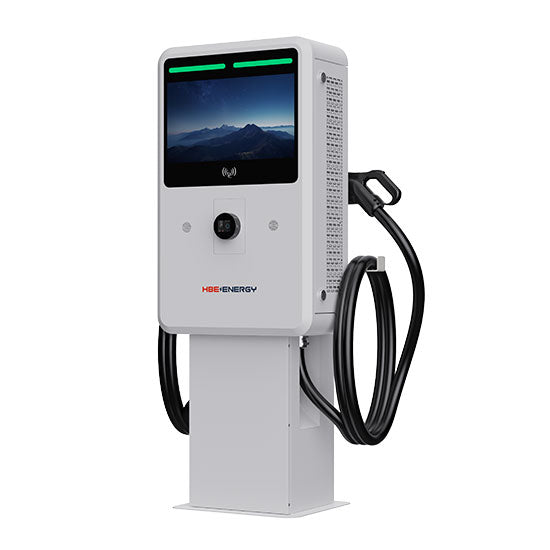

The 60kW Ultra Versatile EV DC Fast Charger is designed for commercial EV charging applications, offering high-power DC charging, intelligent connectivity and flexible payment options. With dual charging outputs, a high-resolution touchscreen and support for modern communication protocols, it is suitable for a range of commercial charging environments.
Features
- 60kW DC Charging Power: Designed for high-power electric vehicle charging applications.
- Dual Charging Outputs: Supports two charging outputs, with power distribution subject to the charger's configuration and operating conditions.
- Wide DC Output Voltage Range: 200–1000V DC.
- Maximum Output Current: Up to 250A, subject to operating voltage and power limits.
- High Efficiency: Peak efficiency of up to 95%.
- 21.5-Inch Touchscreen: Full HD LCD touchscreen with 1920 × 1080 resolution.
- Smart Connectivity: Supports dual-SIM 4G, Wi-Fi and Ethernet connectivity.
- Flexible Payment Options: QR code, RFID and optional credit card payment, depending on configuration.
- Communication Protocols: OCPP 2.0.1, with OCPP 1.6J available as an option.
- 5-Metre Charging Cable: Provides flexibility for vehicle positioning.
- Comprehensive Protection: Includes overcurrent, overvoltage, undervoltage, overtemperature, short-circuit, insulation monitoring and surge protection.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | DC Fast EV Charger |
| Rated Output Power | 60kW |
| DC Output Voltage | 200–1000V DC |
| Maximum Output Current | 250A |
| Peak Efficiency | Up to 95% |
| Number of Outputs | 2 |
| Screen | 21.5-inch LCD touchscreen |
| Screen Resolution | 1920 × 1080 |
| Connectivity | Dual-SIM 4G, Wi-Fi, Ethernet |
| Communication Protocol | OCPP 2.0.1; OCPP 1.6J optional |
| RFID Protocol | ISO 14443 A/B |
| Charging Cable Length | 5 metres |
| Earthing System | 3P, PE (no neutral), subject to installation requirements |
| Operating Temperature | -30°C to 55°C |
| Maximum Operating Altitude | 2,000 metres |
| Dimensions (L × W × H) | 645 × 275 × 1,050mm |
