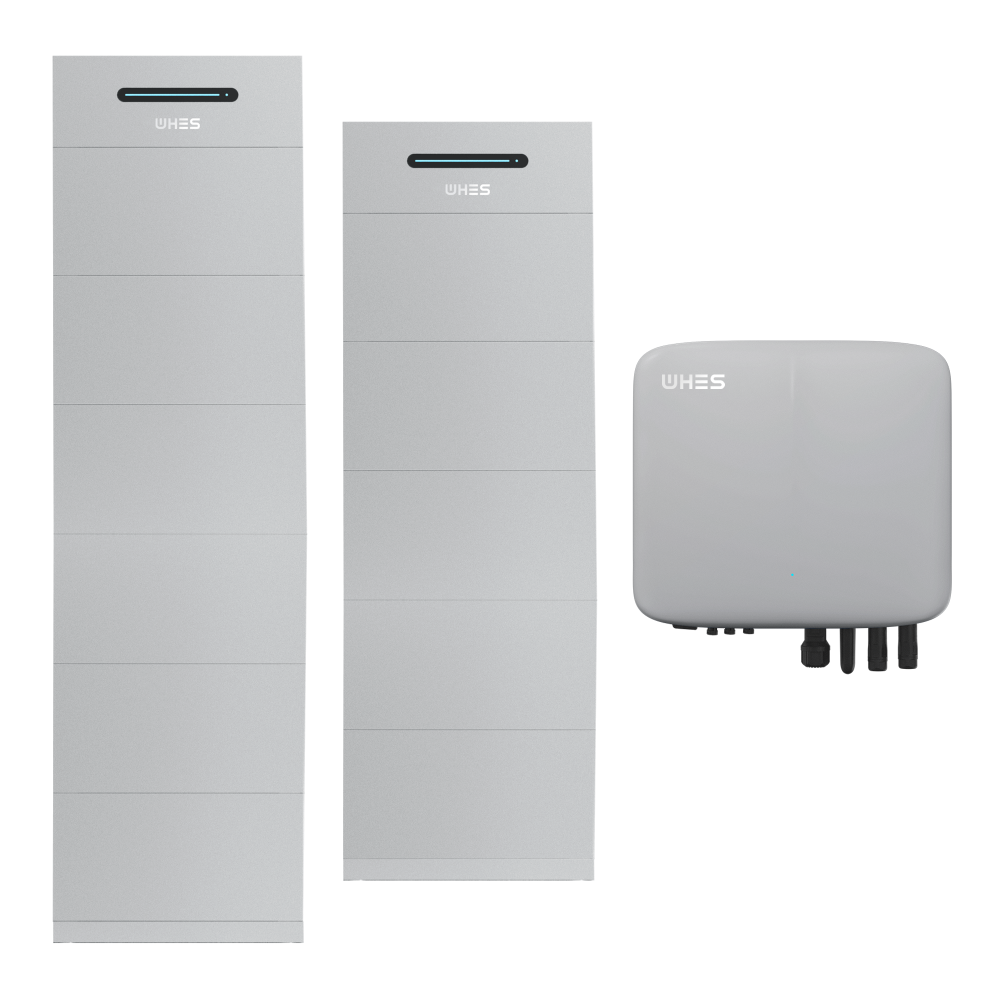

WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

  WHES High Voltage Battery Box  The WHES High Voltage Battery Box is a modular and scalable energy storage solution designed for residential and commercial systems. With a high voltage...
Vendor: Ople Appliances
Availability: In Stock
$19,799.00
$19,799.00
Service: Only Product
Upgrade Option: 10KW 3Ph Inverter
Ask An Expert
10 customers are viewing this product

WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

Ople Appliances

WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

$19,799.00
WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

Ople Appliances

WHES 54.89kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)

$19,799.00
Service: Only Product
Upgrade Option: 10KW 3Ph Inverter
Description
Description
x



WHES High Voltage Battery Box

The WHES High Voltage Battery Box is a modular and scalable energy storage solution designed for residential and commercial systems. With a high voltage architecture and stackable modules, it supports a wide range of applications when paired with high voltage hybrid inverters.

Key Features

  • Compatible: Supports optional intelligent heating module, providing a wider operating temperature range
  • Convenient: Integrated plug-in terminal, saving 75% installation time between modules; IP65, indoor or outdoor application.
  • Safe: Four-layer protection design, including built-in fire suppression system; Long life cell, meeting the most stringent safety standards – UL9540A.
  • Scalable: Max. 5 units in parallel, up to 149.76kWh capacity range; Adaptable to a wide range of applications, including commercial and industrial.
Compatible
Supports optional intelligent heating module, providing a wider operating temperature range
Convenient
Integrated plug-in terminal, saving 75% installation time between modules; IP65, indoor or outdoor application.
Safe
Four-layer protection design, including built-in fire suppression system; Long life cell, meeting the most stringent safety standards – UL9540A.
Scalable
Max. 5 units in parallel, up to 149.76kWh capacity range; Adaptable to a wide range of applications, including commercial and industrial.
Specification 1 Module 2 Modules 3 Modules 4 Modules 5 Modules 6 Modules
Model WH-BXC4992-1S WH-BXC4992-2S WH-BXC4992-3S WH-BXC4992-4S WH-BXC4992-5S WH-BXC4992-6S
Battery Type LFP
Battery Module 4.992 kWh, 96 V
No. of Modules 1 2 3 4 5 6
Nominal Capacity 4.992 kWh 9.984 kWh 14.976 kWh 19.968 kWh 24.96 kWh 29.952 kWh
Usable Energy Capacity 4.493 kWh 8.895 kWh 13.478 kWh 17.971 kWh 22.464 kWh 26.956 kWh
Rated DC Power 2.4 kW 4.8 kW 7.2 kW 9.6 kW 12 kW 14.4 kW
Nominal Voltage 96 V 192 V 288 V 384 V 480 V 576 V
Operating Voltage 84–108 V 168–216 V 252–324 V 336–432 V 420–540 V 504–648 V
Recommend Charge/Discharge Current 26 A
Max. Charge/Discharge Current 52 A
Depth of Discharge 90%
Display SOC indicator, Status indicator
Communication Interface CAN, RS485
Dimensions (W×D×H) 600×350×575 mm 600×350×880 mm 600×350×1185 mm 600×350×1490 mm 600×350×1795 mm 600×350×2100 mm
Weight 69 kg 126 kg 183 kg 240 kg 297 kg 354 kg
Operating Temperature Range -20°C…+55°C*
Relative Humidity 0%…95%
Altitude ≤ 3000 m
Installation Indoor/Outdoor, Floor stand
Cooling Natural
Ingress Protection IP65
Standards UN38.3, IEC62619, IEC61000, IEC63056, IEC62040

Package  – WHES 10kW 3P WH-THA103 44.91 kWh WH-BXC4992 Includes:

  • 1 × WHES 10kW Three Phase Hybrid Inverter with CT(WH-THA103)
  • 11 × WHES High Voltage LFP Battery (4.99kWh each, total 54.89kWh)
