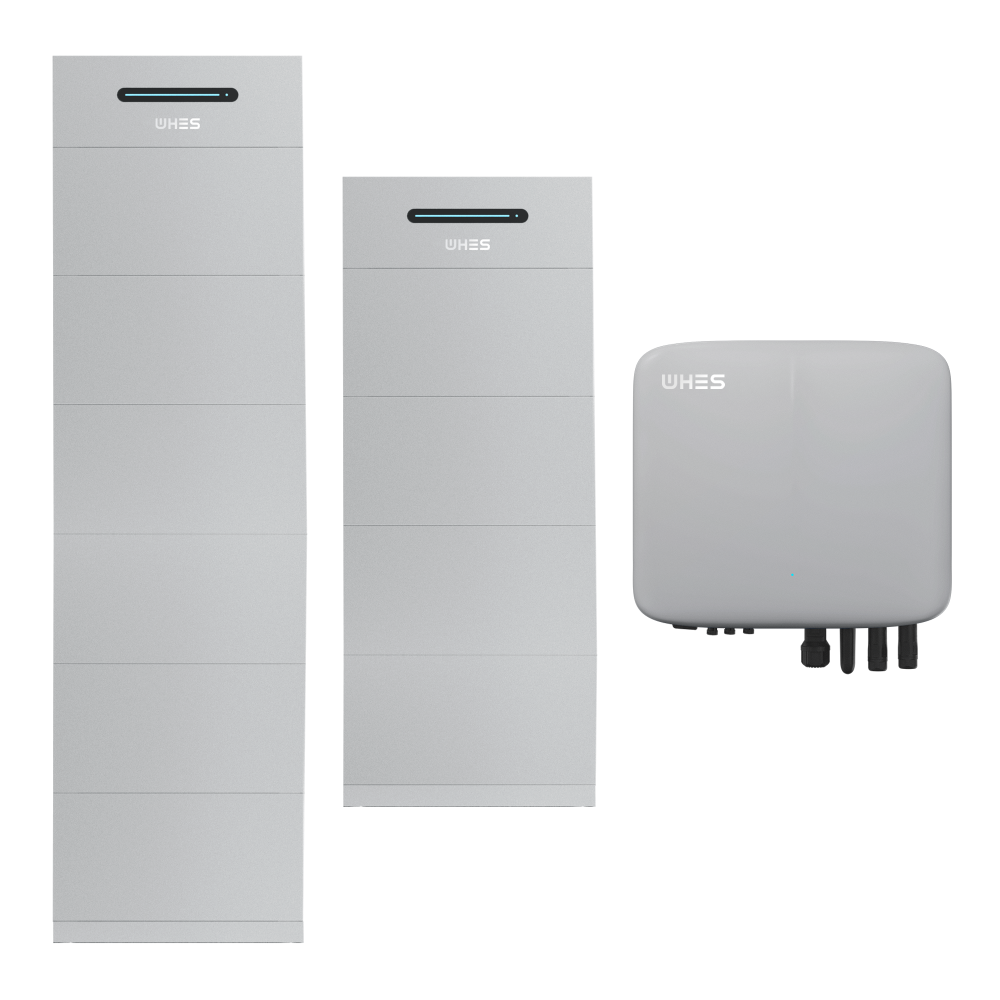

WHES 49.9kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)
- $18,299.00
- $18,299.00
- Unit price
- per
⚡ Get an Installation Quote
Solar & battery assessment • 1–2 mins to submit
10 customers are viewing this product
Vendor: Ople Appliances
WHES 49.9kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)
$18,299.00
Vendor: Ople Appliances
WHES 49.9kWh High Voltage LFP Battery & 10kW Three Phase Hybrid Inverter with CT(WH-THA103)
$18,299.00
Description
x
WHES High Voltage Battery Box
The WHES High Voltage Battery Box is a modular and scalable energy storage solution designed for residential and commercial systems. With a high voltage architecture and stackable modules, it supports a wide range of applications when paired with high voltage hybrid inverters.
Key Features
- Compatible: Supports optional intelligent heating module, providing a wider operating temperature range
- Convenient: Integrated plug-in terminal, saving 75% installation time between modules; IP65, indoor or outdoor application.
- Safe: Four-layer protection design, including built-in fire suppression system; Long life cell, meeting the most stringent safety standards – UL9540A.
- Scalable: Max. 5 units in parallel, up to 149.76kWh capacity range; Adaptable to a wide range of applications, including commercial and industrial.
Compatible
Supports optional intelligent heating module, providing a wider operating temperature range
Convenient
Integrated plug-in terminal, saving 75% installation time between modules; IP65, indoor or outdoor application.
Safe
Four-layer protection design, including built-in fire suppression system; Long life cell, meeting the most stringent safety standards – UL9540A.
Scalable
Max. 5 units in parallel, up to 149.76kWh capacity range; Adaptable to a wide range of applications, including commercial and industrial.
| Specification | 1 Module | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
|---|---|---|---|---|---|---|
| Model | WH-BXC4992-1S | WH-BXC4992-2S | WH-BXC4992-3S | WH-BXC4992-4S | WH-BXC4992-5S | WH-BXC4992-6S |
| Battery Type | LFP | |||||
| Battery Module | 4.992 kWh, 96 V | |||||
| No. of Modules | 1 | 2 | 3 | 4 | 5 | 6 |
| Nominal Capacity | 4.992 kWh | 9.984 kWh | 14.976 kWh | 19.968 kWh | 24.96 kWh | 29.952 kWh |
| Usable Energy Capacity | 4.493 kWh | 8.895 kWh | 13.478 kWh | 17.971 kWh | 22.464 kWh | 26.956 kWh |
| Rated DC Power | 2.4 kW | 4.8 kW | 7.2 kW | 9.6 kW | 12 kW | 14.4 kW |
| Nominal Voltage | 96 V | 192 V | 288 V | 384 V | 480 V | 576 V |
| Operating Voltage | 84–108 V | 168–216 V | 252–324 V | 336–432 V | 420–540 V | 504–648 V |
| Recommend Charge/Discharge Current | 26 A | |||||
| Max. Charge/Discharge Current | 52 A | |||||
| Depth of Discharge | 90% | |||||
| Display | SOC indicator, Status indicator | |||||
| Communication Interface | CAN, RS485 | |||||
| Dimensions (W×D×H) | 600×350×575 mm | 600×350×880 mm | 600×350×1185 mm | 600×350×1490 mm | 600×350×1795 mm | 600×350×2100 mm |
| Weight | 69 kg | 126 kg | 183 kg | 240 kg | 297 kg | 354 kg |
| Operating Temperature Range | -20°C…+55°C* | |||||
| Relative Humidity | 0%…95% | |||||
| Altitude | ≤ 3000 m | |||||
| Installation | Indoor/Outdoor, Floor stand | |||||
| Cooling | Natural | |||||
| Ingress Protection | IP65 | |||||
| Standards | UN38.3, IEC62619, IEC61000, IEC63056, IEC62040 | |||||
Package – WHES 10kW 3P WH-THA103 49.9 kWh WH-BXC4992 Includes:
-
1 × WHES 10kW Three Phase Hybrid Inverter with CT(WH-THA103)
- 10 × WHES High Voltage LFP Battery (4.99kWh each, total 49.9kWh)
