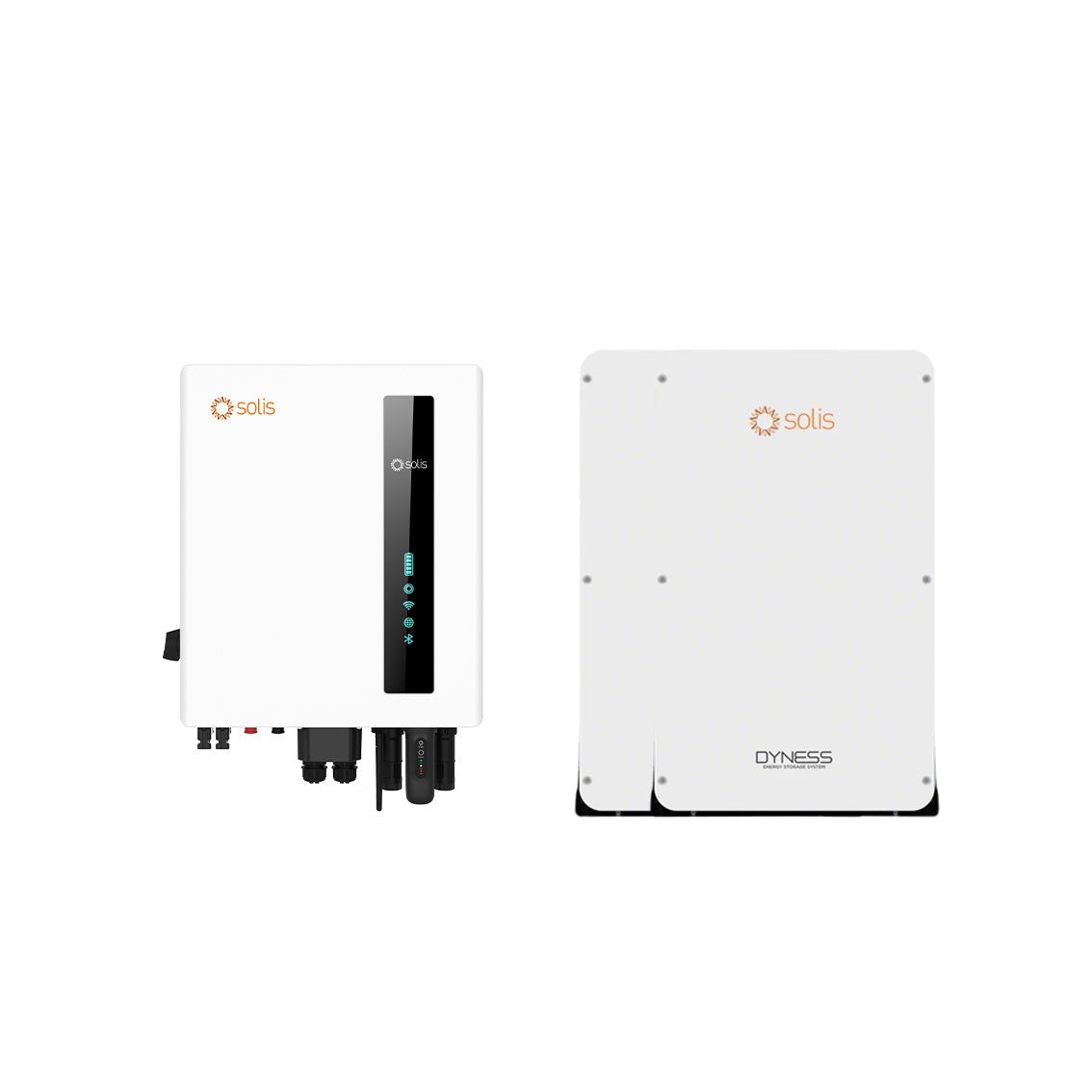

The Solis S6-EH1P5K-L-AU is a 5kW single-phase low-voltage hybrid inverter paired with two Dyness Powerbox-US 10.24kWh batteries (total 20.48kWh), forming a residential energy storage system.
Inverter
The Solis S6 series hybrid inverter is designed for residential PV systems with battery storage. It features dual MPPT trackers, IP66 protection rating, and supports AC-coupled lithium battery systems with high charging rates . The "EH" designation indicates it is a hybrid (Energy Storage Hybrid) inverter capable of battery management and grid-tied operation .
Battery
The Dyness Powerbox-US is a 10.24kWh low-voltage battery using safe LiFePO₄ chemistry. Two units in parallel provide 20.48kWh total storage capacity . Each battery features a built-in Battery Management System (BMS) and IP65 rated enclosure for indoor or outdoor installation.
Inverter - S6-EH1P5K-L-AU
5kW rated output power
Dual MPPT trackers with 2 string inputs
8kW max DC input power (PV side)
Supports AC-coupled lithium battery systems
IP66 protection rating for outdoor installation
Built-in WiFi for remote monitoring via SolisCloud
Battery - Powerbox-US (20.48kWh total)
10.24kWh per module, 2 modules total capacity 20.48kWh
Safe LiFePO₄ battery chemistry
Integrated Battery Management System (BMS)
IP65 rated enclosure
| Parameter | Specification |
|---|---|
| Model | S6-EH1P5K-L-AU |
| Nominal Output Power | 5,000 W (5kW) |
| Max Input Power (PV) | 8,000 W (8kW) |
| Output Phases | Single Phase |
| Protection Rating | IP66 |
| Max DC Input Voltage | 600 V |
| Max DC Input Current | 16 A |
| Number of MPPT Inputs | 2 |
| Width | 405 mm |
| Height | 480 mm |
| Depth | 205 mm |
| Weight | 24 kg |
| Warranty | 120 months (10 years) |
Inverter Type: Hybrid (Energy Storage), supports AC-coupled lithium battery systems
| Parameter | Specification |
|---|---|
| Nominal Energy (per unit) | 10.24 kWh |
| System Total (2 units) | 20.48 kWh |
| Nominal Voltage | 51.2 V |
| Battery Type | LiFePO₄ |
| Recommended DoD | ≤90% |
| Max Continuous Current | ≤0.5C |
| Max Charging Voltage | 57.6 V |
| Absorption Voltage | 56.5 V |
| Float Voltage | 56.0 V |
| Shutdown (Cut-off) Voltage | 48.0 V |
