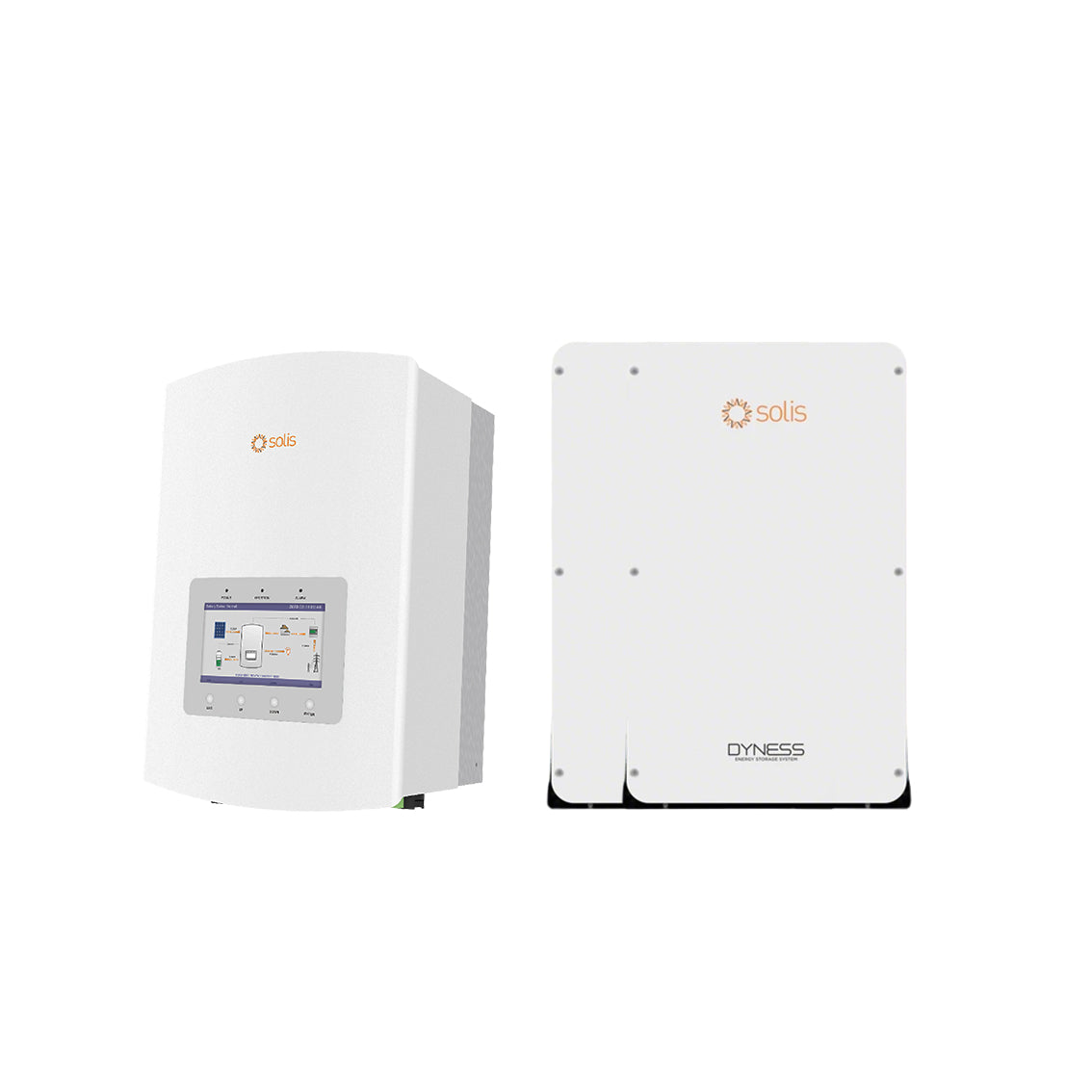

Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

System Overview This energy storage system combines a Solis 5kW three-phase hybrid inverter with two (2) Dyness Powerbox-US 10.24kWh batteries, providing a total storage capacity of 20.48kWh. The system matches a high-voltage (HV) battery inverter with...
Vendor: Ople Appliances
Availability: In Stock
$6,499.00
$6,499.00
Service: Product & Installation
Options: 20.48kWh Dyness Energy Storage
Ask An Expert
10 customers are viewing this product

Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

Ople Appliances

Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

$6,499.00
Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

Ople Appliances

Solis 20.48kWh Dyness Energy Storage & 5kW Three Phase Hybrid Inverter

$6,499.00
Service: Product & Installation
Options: 20.48kWh Dyness Energy Storage
Description
Description
x

System Overview

This energy storage system combines a Solis 5kW three-phase hybrid inverter with two (2) Dyness Powerbox-US 10.24kWh batteries, providing a total storage capacity of 20.48kWh.

The system matches a high-voltage (HV) battery inverter with low-voltage batteries—please carefully review the "Important Compatibility Information" section below before purchasing.

Key Features

Solis 5kW Three-Phase Hybrid Inverter

  • Three-phase output: 5kW rated power for residential and small commercial applications

  • High voltage battery compatibility: Works with HV batteries (120-600V DC)

  • Multiple MPPT options: Available with 2 or 3 MPPT trackers depending on model

  • UPS-level backup: <10ms switching time for emergency power supply

  • High efficiency: Maximum efficiency up to 98.0%

  • IP66 protection: Suitable for outdoor installation in harsh weather conditions

  • Smart monitoring: SolisCloud app with remote control and upgrade capability

  • Generator compatible: Supports generator input for extended backup

  • Parallel operation: Up to 6 units can be connected in parallel

  • Warranty: 10 years (depending on model)

Dyness Powerbox-US Battery (2 Units = 20.48kWh Total)

  • Chemistry: LiFePO₄ (Lithium Iron Phosphate) for safety and long life

  • Capacity per unit: 10.24kWh nominal energy, 200Ah capacity

  • Low voltage design: 51.2V nominal voltage (44.8-57.6V range)

  • BMS: Integrated smart Battery Management System with embedded breaker

  • Cycle life: ≥6,000 cycles

  • Scalability: Up to 5 units in parallel (max 51.2kWh)

  • Enclosure protection: NEMA 4X / IP65 for indoor or outdoor installation

  • Certifications: UL1973, UL9540A, UL9540, UN38.3

  • Warranty: 10 years

Technical Specifications

Solis 5kW Three-Phase Hybrid Inverter Options

Two series of 5kW three-phase hybrid inverters are available from Solis:

Option 1: Solis S6 K2-H Series (Newer Generation)

Parameter Specification
Model Example S6-EH3P5K2-H
Rated AC Output Power 5,000 W
Number of Phases Three Phase (3P)
Max Efficiency 96.5%
Max DC Input Voltage 1,000 V
MPPT Voltage Range 200 - 850 V
Number of MPPT Trackers 2
Max Input Current per MPPT 16 A
Battery Type High Voltage Lithium-ion
Battery Voltage Range 120 - 600 V
EPS Switching Time <10 ms
Protection Rating IP66
Dimensions (W×H×D) 600 × 500 × 210 mm
Weight 27.6 kg
Coolings Passive (fanless)
Operating Temperature -25°C ~ +60°C
Communications RS485, CAN, Bluetooth (WiFi/4G/LAN optional)
Warranty 10 years

Option 2: Solis RHI-3P5K-HVES-5G Series (Established Model)

Parameter Specification
Model RHI-3P5K-HVES-5G
Rated AC Output Power 5,000 W
Max DC Input Power 8,000 W
Number of Phases Three Phase (3/N/PE)
Rated Grid Voltage 380/400V
Max Efficiency 97.7%
Max DC Input Voltage 600-1,000 V
Number of MPPT Trackers 2
Number of String Inputs 2
Max Input Current 26 A
Battery Type High Voltage Lithium-ion
Battery Voltage Range 160 - 600 V
Self Consumption (Night) <7 W
EPS Switching Time <10 ms (typical)
Protection Rating IP65
Dimensions (W×H×D) 535 × 455 × 181 mm
Weight 25 kg
Cooling Natural convection (fanless)
Operating Temperature -25°C ~ +60°C
Communications RS485 (WiFi/GPRS optional)
Warranty 5 years (extendable)

Option 3: Solis S6-EH3P Series (3 MPPT)

Parameter Specification
Model Example S6-EH3P5K-H (Incl. 3PH meter)
Number of MPPT Trackers 3
Max PV Input Current per MPPT 13-16 A
Battery Voltage Range 160 - 600 V
Max Charge/Discharge Current 25-50 A
Max Efficiency up to 98.0%
EPS Switch Time <10 ms
Parallel Support Up to 10 units
Warranty 10 years

Dyness Powerbox-US Battery Specifications (Per Unit)

Parameter Specification
Nominal Energy 10.24 kWh
System Total (2 Units) 20.48 kWh
Nominal Capacity 200 Ah
Nominal Voltage 51.2 V
Working Voltage Range 44.8 - 57.6 V
Battery Type LiFePO₄
Recommend Output Power 5.12 kW
Max Output Power 7.68 kW
Recommended Charge/Discharge Current 100 A (≤0.5C)
Max Charge/Discharge Current 150 A
Peak Current (15s) 200 A
Recommended Depth of Discharge 85%
Cycle Life ≥6,000 cycles
Charging Temperature 0°C ~ 55°C (32°F ~ 131°F)
Discharging Temperature -20°C ~ 55°C (-4°F ~ 131°F)
Enclosure Protection NEMA 4X / IP65
Communication CAN / RS485 / RS232
Dimensions (W×H×D) 555 × 928 × 210 mm (21.85 × 36.54 × 8.27 in)
Warranty 10 Years
Certifications UN38.3, UL1973, UL9540A, UL9540
CEC Listed Yes (California Energy Commission)
Max Parallel Units Up to 5 units (51.2kWh total)

System Configuration for 20.48kWh

Number of Powerbox-US Units Total Energy Usable Energy (@85% DoD)
1 unit 10.24 kWh ~8.70 kWh
2 units 20.48 kWh ~17.41 kWh
3 units 30.72 kWh ~26.11 kWh
4 units 40.96 kWh ~34.82 kWh
5 units 51.20 kWh ~43.52 kWh



Required Inverter Battery Parameter Settings

When configuring the Solis three-phase hybrid inverter with Dyness Powerbox-US batteries, the following parameters must be set on the inverter:

Parameter Value
Max Charging (Bulk) Voltage 57.6 V
Absorption Voltage 56.5 V
Float Voltage 56.0 V
Shutdown (Cut-off) Voltage 48.0 V

Additional Operating Recommendations:

  • Long-term continuous charging/discharging current should be ≤0.5C (≤100A for Powerbox-US)

  • Recommended maximum depth of discharge (DoD) should be ≤85-90%

  • If battery remaining capacity is empty, charge it within 48 hours
