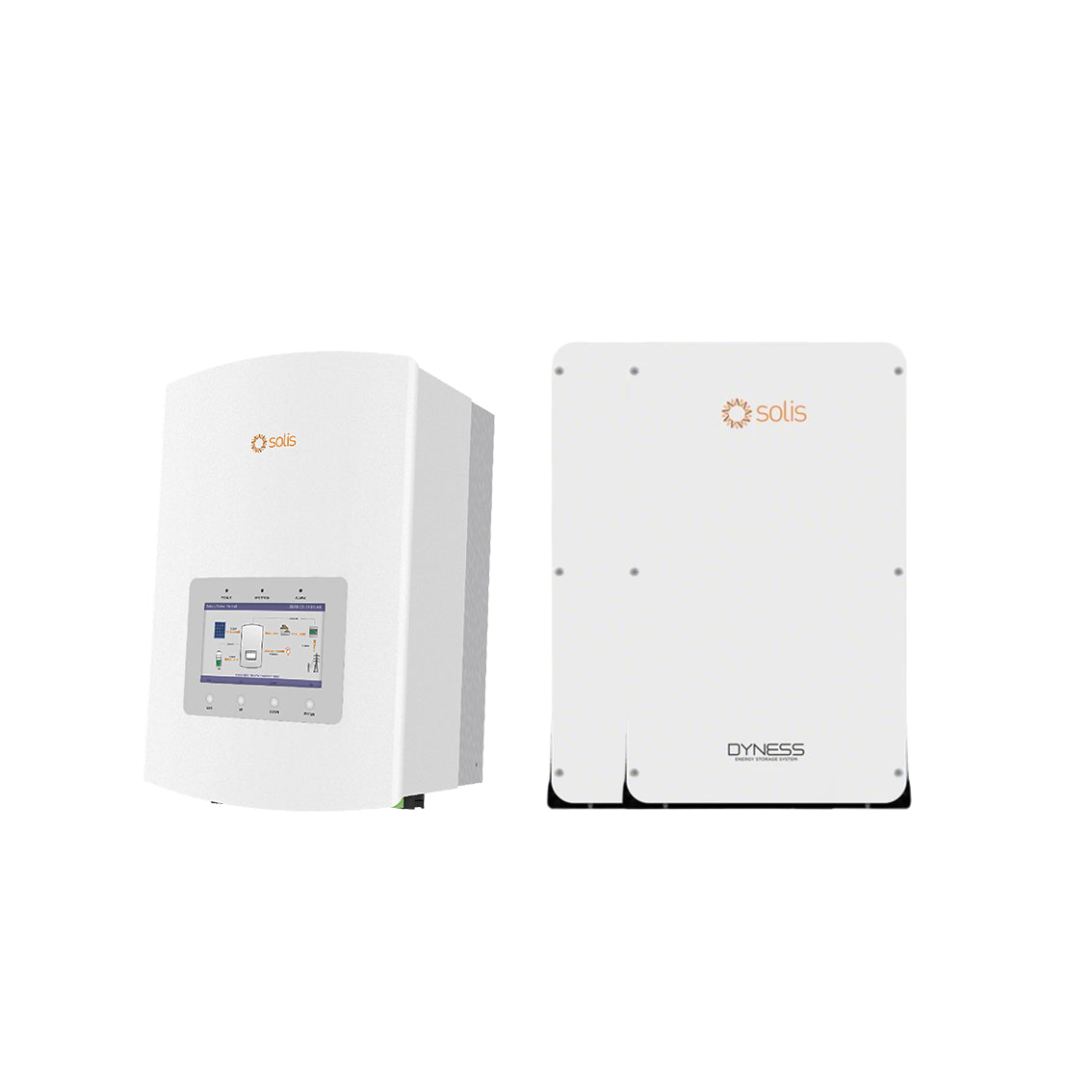

Solis 20.48kWh AC Coupled Battery System & 5kW Three Phase Hybrid Inverter (IG-SOL-S5-EH1P5K-L)
$6,699.00
Vendor: Ople Appliances
Solis 20.48kWh AC Coupled Battery System & 5kW Three Phase Hybrid Inverter (IG-SOL-S5-EH1P5K-L)
$6,699.00
Description
xSystem Overview
This system combines a Solis 5kW three-phase hybrid inverter with a 20.48kWh AC-coupled battery system, enabling you to add energy storage and backup power to an existing solar PV installation without modifying the DC side of your current system.
What is AC-Coupling?
AC-coupling allows you to integrate an existing grid-tied PV inverter with a Solis three-phase hybrid inverter, enabling battery storage, backup power, and advanced export control—without rebuilding the DC side of an installed PV array. The S6 hybrid supports both Solis and third-party three-phase grid-tied inverters, making it ideal for retrofit projects and phased upgrades.
When AC-Coupling Makes Sense:
-
Retrofitting existing PV plants: Keep your current grid-tied inverter and add batteries for self-consumption, time-of-use shifting, and backup
-
Phased deployments: Start with PV, add storage later without re-wiring PV strings
-
Mixed fleets: The S6 hybrid supports Solis or third-party three-phase PV inverters within specified power limits
Solis 5kW Three Phase Hybrid Inverter
Solis offers two three-phase 5kW hybrid inverter models suitable for AC-coupled systems:
Option 1: Solis S6-EH3P5K2-H (Newer Generation)
| Parameter | Specification |
|---|---|
| Rated AC Output Power | 5,000 W (5kW) |
| Number of Phases | Three Phase (3P) |
| Max Efficiency | 96.5% |
| Max DC Input Voltage | 1,000 V |
| MPPT Voltage Range | 200 - 850 V |
| Number of MPPT Trackers | 2 |
| Max Input Current per MPPT | 16 A |
| Battery Type | High Voltage Lithium-ion |
| Battery Voltage Range | 120 - 600 V |
| EPS Switching Time | <10 ms (UPS-level) |
| Protection Rating | IP66 |
| Dimensions (W×H×D) | 600 × 500 × 210 mm |
| Weight | 27.6 kg |
| Cooling | Passive (fanless) |
| Operating Temperature | -25°C ~ +60°C |
| Communication | RS485, CAN, Bluetooth; Optional: WiFi/4G/LAN |
| Warranty | 10 years |
Option 2: Solis RHI-3P5K-HVES-5G (5G Series)
| Parameter | Specification |
|---|---|
| Rated AC Output Power | 5,000 W (5kW) |
| Number of Phases | Three Phase (3/N/PE) |
| Rated Grid Voltage | 380/400V |
| Max Efficiency | 97.7% |
| Max DC Input Voltage | 1,000 V |
| Number of MPPT Trackers | 2 |
| Number of String Inputs | 2 |
| Max Input Current | 26 A |
| Battery Type | High Voltage Lithium-ion |
| Battery Voltage Range | 160 - 600 V |
| Self Consumption (Night) | <7 W |
| EPS Switching Time | <10 ms |
| Topology | Transformerless |
| Protection Rating | IP65 |
| Dimensions (W×H×D) | 535 × 455 × 181 mm |
| Weight | 25 kg |
| Cooling | Natural convection |
| Operating Temperature | -25°C ~ +60°C |
| Communication | RS485; Optional: Wi-Fi, GPRS |
| Warranty | 5 years (extendable) |
20.48kWh AC-Coupled Battery System
Fox ESS LV52 5.12kWh Battery (4 units = 20.48kWh)
The Fox LV52 low-voltage battery system pairs with the Solis AC-coupled inverter to provide scalable energy storage.
| Parameter | Per Unit Specification | System Total (4 Units) |
|---|---|---|
| Model | LV52 | - |
| Nominal Energy | 5.12 kWh | 20.48 kWh |
| Battery Type | LiFePO₄ Prismatic Cell | - |
| Nominal Voltage | 51.2 V | 51.2 V |
| Operating Voltage | 46.4 - 58.4 V | - |
| Recommended Discharge Current | 50 A | - |
| Max Discharge Current | 100 A | - |
| Round-Trip Efficiency | >95% | - |
| Depth of Discharge | 90% | - |
| Scalability | Up to 4 units in parallel | 20.48kWh |
| Cycle Life | >6,000 cycles | - |
| Operating Temp (Charge) | 0°C ~ +55°C | - |
| Operating Temp (Discharge) | -10°C ~ +55°C | - |
| IP Rating | IP21 | - |
| Communication | CAN/RS485 | - |
| Weight | 49.5 kg | ~198 kg |
| Dimensions (per unit) | 420 × 620 × 184.5 mm | - |
