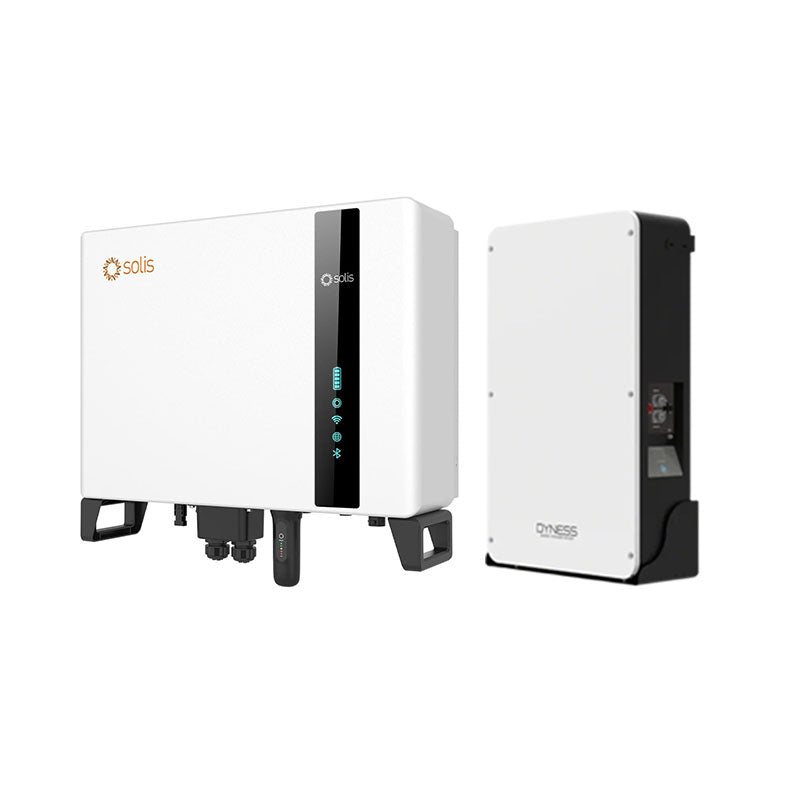

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

Description The Solis S6-EH3P10K-H-AU is a 10kW three-phase high-voltage hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery. InverterThe Solis S6...
Vendor: Ople Appliances
Availability: In Stock
$8,599.00
$8,599.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Ask An Expert
10 customers are viewing this product

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

$8,599.00
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 10kW Three Phase Hybrid Inverter (SOL-S6-EH3P10K-H-AU)

$8,599.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Description
Description
x

Description

The Solis S6-EH3P10K-H-AU is a 10kW three-phase high-voltage hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery.

Inverter
The Solis S6 series is designed for residential hybrid systems, which can work with batteries to optimize self-consumption. The unit can operate in both off-grid and on-grid modes . This three-phase high-voltage energy storage inverter features 4 MPPT trackers and supports up to 6 units in parallel to expand system capacity .

Battery
The Dyness Powerbox Pro is a low-voltage battery using safe LiFePO₄ chemistry. This battery is listed on the CEC approved batteries list and meets AS/NZ Standards. It features prismatic cells with a built-in advanced BMS and perfectly matches Solis inverters for simple plug-and-play installation .

Key Features

Inverter - S6-EH3P10K-H-AU

  • 10kW rated three-phase output power

  • 4 MPPT trackers, suitable for multi-orientation installations to improve power generation

  • Supports up to 6 units in parallel, expanding system capacity

  • Seamless on/off-grid switching in under 10ms, guaranteeing uninterrupted power supply

  • Supports three-phase unbalanced output; each phase supports up to 50% of rated inverter power

  • PV input up to 160% of inverter's rated DC power, maximizing solar utilisation

  • Supports PV input current up to 21A, compatible with latest high-power PV modules

  • IP66 protection rating, adapting to harsher outdoor environments

  • Generator compatible on grid side for insufficient power supply scenarios

  • SolisCloud platform supports smart remote control, AI optimisation, and instant troubleshooting

Battery - Powerbox Pro (10.24kWh)

  • 10.24kWh nominal energy capacity

  • Safe LiFePO₄ battery chemistry

  • Built-in advanced Battery Management System (BMS)

  • Recommended 90% depth of discharge

  • Up to 5 units in parallel (max 51.2kWh)

  • Wall or floor mount options included

  • IP65 rated enclosure for indoor or outdoor installation

  • Built-in side handles for easier transport

Specifications

S6-EH3P10K-H-AU Inverter Specifications

Parameter Specification
Rated AC Output Power 10,000 W (10kW)
Number of Phases Three Phase (3/N/PE)
Rated Output Voltage 380V/400V
Max Efficiency 97.9%
Max DC Input Voltage 1000 V
Number of MPPT Trackers 4
Battery Type High Voltage Lithium-ion
Communication Interfaces CAN, RS485; Optional: Wi-Fi, Cellular, LAN
Protection Rating IP66
Dimensions (W × H × D) 600 × 500 × 230 mm
Weight 30.2 kg
Operating Temperature Range -25°C ~ +60°C
PV Connection MC4 Connector
AC Connection Quick Connection Plug
Display LED indicators & Bluetooth + App
Topology High Frequency Isolation (for battery)
Max Operating Altitude 3000 m
Ingress Protection Rating IP66

Additional Inverter Features (from S6 Series Specifications):

  • Supports max 6 units in parallel for expanded capacity

  • Off-grid mode supports 160% overload for 60 seconds

  • Supports existing PV grid-tie power connection for export control

  • Customizable battery backup level for uninterrupted power

Powerbox Pro Battery Specifications

Parameter Specification
Nominal Energy 10.24 kWh
Nominal Capacity 200 Ah
Nominal Voltage 51.2 V
Operating Voltage Range 44.8 - 57.6 V
Usable Energy 9.216 - 9.728 kWh (based on DoD)
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Cell Type Prismatic
Max Continuous Charge/Discharge Current 100 A
Nominal Power 5.12 kW
Peak Power 10.24 kW
Recommended Depth of Discharge 90%
Recommended C-Rate 0.5C
Cycle Life ≥6,000 cycles
Operating Temperature (Charge) 0°C ~ 55°C
Operating Temperature (Discharge) -20°C ~ 55°C
Protection Rating IP65
Communication Interfaces CAN, RS485, RS232
Dimensions (W × D × H) 555 × 210 × 928 mm
Weight 103 kg / 99.3 kg
Maximum Parallel Units Up to 5 (51.2kWh)
Certifications CEC, CE, EMC, RCM, UN38.3, IEC
Warranty 10 Years
