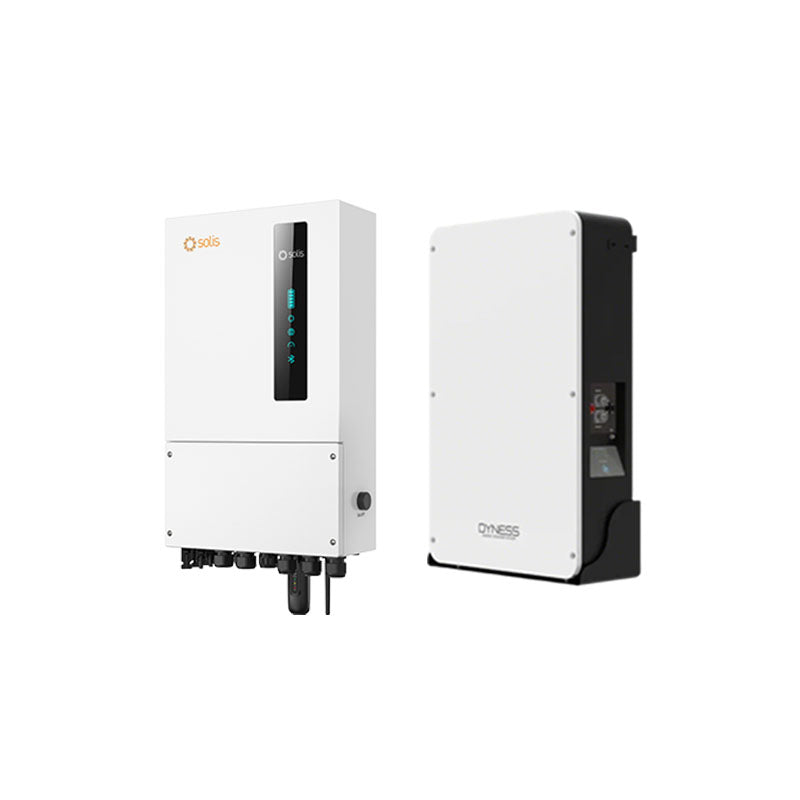

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

Description The Solis S6-EH1P8K-L-PLUS-AU is an 8kW single-phase hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery. InverterThe S6 PLUS series...
Vendor: Ople Appliances
Availability: In Stock
$7,499.00
$7,499.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Ask An Expert
10 customers are viewing this product

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

$7,499.00
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S6-EH1P8K-L-PLUS-AU)

$7,499.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Description
Description
x

Description

The Solis S6-EH1P8K-L-PLUS-AU is an 8kW single-phase hybrid inverter designed for residential PV energy storage systems, paired with the Dyness Powerbox Pro 10.24kWh low-voltage battery.

Inverter
The S6 PLUS series energy storage inverter supports up to 32A MPPT current input, suitable for various high-power PV panels . It features 6-stage timed charge and discharge function, integrated battery treatment and protection functions, and supports multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW .

Battery
The Dyness Powerbox Pro is a low-voltage battery using safe LiFePO₄ chemistry designed for residential energy storage systems. It features prismatic cells with a built-in advanced BMS, supports up to 5 units in parallel for expanded capacity, and is IP65 rated for indoor or outdoor installation .

Key Features

Inverter - S6-EH1P8K-L-PLUS-AU

  • 8kW rated output power

  • Up to 32A MPPT current input for high-power PV panels

  • Dual MPPT trackers with up to 4 string inputs

  • UPS-level switching time (<4 ms)

  • Supports up to 48kW in parallel configuration

  • Supports 6-stage timed charge/discharge

  • Generator compatible for extended backup time

  • AFCI 2.0 arc fault protection (optional)

  • IP66 protection rating

Battery - Powerbox Pro (10.24kWh)

  • 10.24kWh nominal energy capacity

  • Safe LiFePO₄ battery chemistry

  • Built-in advanced Battery Management System (BMS)

  • Recommended 90% depth of discharge

  • Up to 5 units in parallel (max 51.2kWh)

  • Wall or floor mount options

  • IP65 rated enclosure

  • Suitable for South Africa harsh weather conditions

Specifications

S6-EH1P8K-L-PLUS-AU Inverter Specifications

Parameter Specification
Rated AC Output Power 8,000 W (8kW)
Max Apparent Output Power 8,000 VA
Rated Output Current 34.8 A (230V) / 36.4 A (220V)
Number of Phases Single Phase
Rated Grid Voltage 220V / 230V
Rated Frequency 50 Hz / 60 Hz

DC Input (PV Side) Parameters

Parameter Specification
Max Recommended PV Input Power 12,800 W
Max DC Input Voltage 500 V
Start-up Voltage 90 V
MPPT Voltage Range 90 - 435 V
Number of MPPT Trackers 2
Number of String Inputs Up to 4
Max Input Current per MPPT 32 A
Max Short Circuit Current per MPPT 40 A

Battery Parameters

Parameter Specification
Battery Type Lithium-ion / Lead-acid
Permissible Voltage Range 120 - 600 V
Max Charge/Discharge Power 8,000 W
Max Charge/Discharge Current 190 A
Communication CAN / RS485

AC Output Parameters

Parameter Specification
Power Factor >0.99 (0.8 leading - 0.8 lagging)
THDi <2%

Backup (EPS) Parameters

Parameter Specification
Rated Backup Output Power 8,000 W
Max Apparent Output Power 2x rated power, 10 seconds
Backup Switching Time <4 ms
THDv (@linear load) <2%

Efficiency Parameters

Parameter Specification
Maximum Efficiency 96.2%
EU Efficiency 96.1%
Max Battery Charging Efficiency (PV to BAT) 95.3%
Max Battery Discharging Efficiency (BAT to AC) 93.8%

Protection & General Data

Parameter Specification
Protection Rating IP66
Dimensions (W × H × D) 335 × 560 × 227-253 mm
Weight 22 - 23.5 kg
Cooling Method Intelligent fan cooling
Operating Temperature Range -40°C ~ +60°C
Topology High frequency isolation (for battery)
Max Operating Altitude 3000 m
Communication Interfaces RS485, CAN, Optional: Wi-Fi, GPRS, LAN
Display 7.0" LCD Display & Bluetooth + APP
DC Connection MC4 Plug (PV Port) / Terminal Block (BAT Port)

AC Input (Grid Port) Parameters

Parameter Specification
Input Voltage Range 187 - 253 V
Max Input Current 50 A
Frequency Range 45 - 55 Hz / 55 - 65 Hz

Powerbox Pro Battery Specifications

Parameter Specification
Nominal Energy 10.24 kWh
Nominal Capacity 200 Ah
Nominal Voltage 51.2 V
Operating Voltage Range 44.8 - 57.6 V
Usable Energy 9.728 kWh (based on 90% DoD)
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Cell Type Prismatic
Max Continuous Charge/Discharge Current 100 A
Nominal Power 5.12 kW
Peak Power 10.24 kW
Recommended Depth of Discharge 90%
Recommended C-Rate 0.5C
Cycle Life ≥6,000 cycles
Operating Temperature (Charge) 0°C ~ 55°C
Operating Temperature (Discharge) -20°C ~ 55°C
Protection Rating IP65
Communication Interfaces CAN, RS485, RS232
Dimensions (W × D × H) 555 × 210 × 928 mm
Weight 103 kg
Maximum Parallel Units Up to 5 (51.2kWh)
