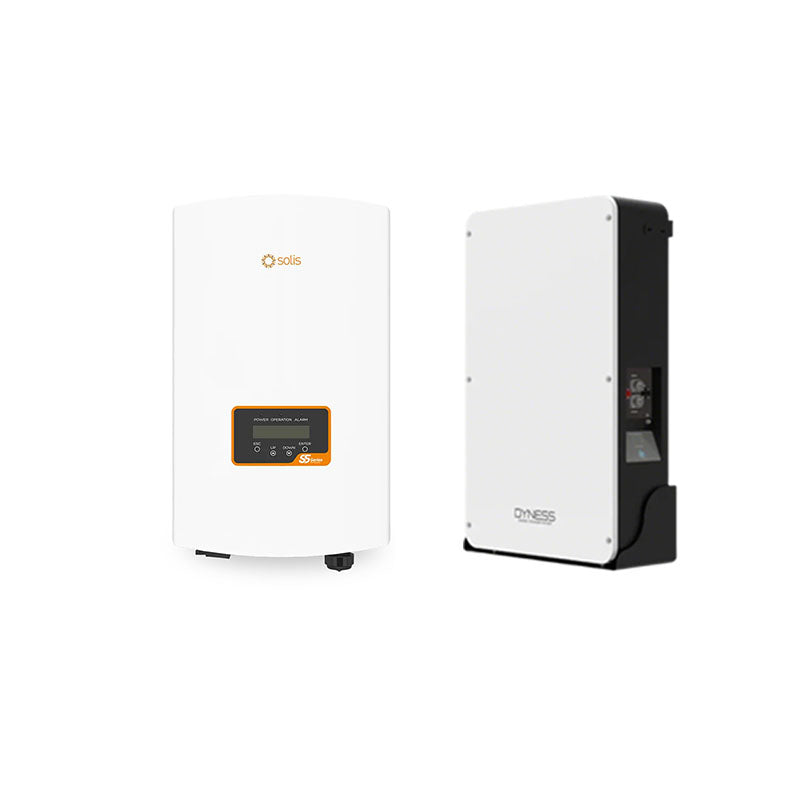

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S5-GR1P8K)
Description The Solis S5-GR1P8K is an 8kW single-phase grid-tied inverter from the S5 series, designed for residential solar PV systems. It is not a hybrid inverter and does not have battery communication ports for...
Vendor:
Ople Appliances
Availability:
In Stock
- $6,199.00
- $6,199.00
- Unit price
- per
10 customers are viewing this product
Vendor: Ople Appliances
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S5-GR1P8K)
$6,199.00
Vendor: Ople Appliances
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 8kW Single Phase Hybrid Inverter (SOL-S5-GR1P8K)
$6,199.00
Description
xDescription
The Solis S5-GR1P8K is an 8kW single-phase grid-tied inverter from the S5 series, designed for residential solar PV systems. It is not a hybrid inverter and does not have battery communication ports for direct energy storage integration.
The Dyness Powerbox Pro is a 10.24kWh low-voltage battery designed for residential energy storage systems.
⚠️ Important Compatibility Note: The S5-GR1P8K is a grid-tied inverter, NOT a hybrid inverter. It cannot directly connect to or manage a battery. To use the Powerbox Pro battery for energy storage, you need a hybrid inverter (e.g., Solis S6-EH1P series). These two products are not directly compatible as a combined storage system.
Key Features
Inverter - S5-GR1P8K (Grid-Tied Only)
Battery - Powerbox Pro (10.24kWh)
-
10-year warranty
Specifications
S5-GR1P8K Inverter Specifications (Grid-Tied)
AC Output Parameters
| Parameter | Specification |
|---|---|
| Model Number | S5-GR1P8K |
| Rated Output Power | 8,000 W (8kW) |
| Max Generator Power | 10,600 Wp |
| Number of Phases | Single Phase |
| Max Output Current | 36.6 A |
| Max Efficiency | 98.0% |
DC Input (PV Side) Parameters
| Parameter | Specification |
|---|---|
| Max DC Input Voltage | 600 V |
| Startup Voltage | 120 V |
| DC Shutdown Voltage | 90 V |
| MPPT Voltage Range (Min) | 90 V |
| MPPT Voltage Range (Max) | 520 V |
| Number of MPPT Trackers | 3 |
| Max Input Current | 14 A |
Protection & General Data
| Parameter | Specification |
|---|---|
| Protection Rating | IP66 |
| Dimensions (W × H × D) | 333 × 579 × 253 mm |
| Weight | 18.5 kg |
| Cooling Method | Natural convection (fanless) |
| Operating Temperature Range | -25°C ~ +60°C |
| Night-time Consumption | <1 W |
| Communication Interfaces | Ethernet, WLAN, RS485 |
| Warranty | 5 years |
Powerbox Pro Battery Specifications
| Parameter | Specification |
|---|---|
| Nominal Energy | 10.24 kWh |
| Nominal Capacity | 200 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 44.8 - 57.6 V |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Cell Type | Prismatic |
| Nominal Power | 5.12 kW |
| Peak Power | 10.24 kW |
| Max Continuous Charge/Discharge Current | 100 A |
| Recommended C-Rate | 0.5 C |
| Recommended Depth of Discharge | 90% |
| Cycle Life | ≥6,000 cycles |
| Operating Temperature (Discharge) | -20°C ~ 55°C |
| Protection Rating | IP65 |
| Communication Interfaces | CAN, RS485, RS232 |
| Dimensions (W × D × H) | 555 × 210 × 928 mm |
| Weight | 99.3 - 103 kg |
| Maximum Parallel Units | Up to 50 (512kWh) |
