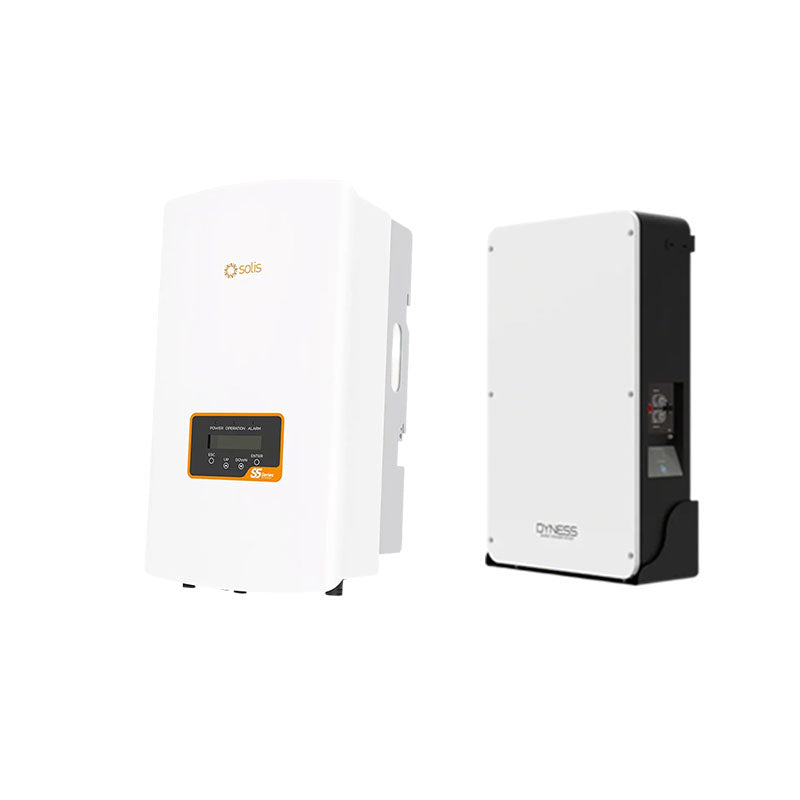

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

Description The Solis S5-GR3P15K is a 15kW three-phase grid-tied inverter from the S5 series, designed for residential and commercial PV systems. It is not a hybrid inverter and does not have battery communication ports...
Vendor: Ople Appliances
Availability: In Stock
$7,199.00
$7,199.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Ask An Expert
10 customers are viewing this product

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

$7,199.00
Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

Ople Appliances

Solis 10.24kWh Dyness Powerbox Pro Energy Storage & 15kW Three Phase Hybrid Inverter (SOL-S5-GR3P15K-v2)

$7,199.00
Service: Product & Installation
Options: 10.24kWh Dyness Powerbox Pro Energy Storage
Description
Description
x

Description

The Solis S5-GR3P15K is a 15kW three-phase grid-tied inverter from the S5 series, designed for residential and commercial PV systems. It is not a hybrid inverter and does not have battery communication ports for direct energy storage integration .

The Dyness Powerbox Pro is a 10.24kWh low-voltage battery designed for residential energy storage systems .

⚠️ Important Compatibility Note: The S5-GR3P15K is a grid-tied inverter, NOT a hybrid inverter. It cannot directly connect to or manage a battery. To use the Powerbox Pro battery for energy storage, you need a hybrid inverter. These two products are not directly compatible as a combined storage system.

Key Features

Inverter - S5-GR3P15K (Grid-Tied Only)

  • 15kW three-phase output power

  • 2 MPPT trackers for optimized solar harvesting

  • 20kW max PV input power

  • IP66 protection rating for outdoor installation

  • 98.5% maximum efficiency

  • Transformerless topology

  • RS485 communication; optional Wi-Fi/GPRS

  • Night-time self-consumption <1W

Battery - Powerbox Pro (10.24kWh)

  • 10.24kWh nominal energy capacity

  • Safe LiFePO₄ battery chemistry

  • Built-in advanced Battery Management System (BMS)

  • Recommended 85-90% depth of discharge

  • Up to 50 units in parallel (max 512kWh)

  • Wall or floor mount options

  • IP65 rated enclosure for indoor or outdoor installation

Specifications

S5-GR3P15K Inverter Specifications (Grid-Tied)

Parameter Specification
Model S5-GR3P15K
Rated Output Power 15,000 W (15kW)
Max PV Input Power 20,000 W - 22,500 W
Number of Phases Three Phase (3/N/PE)
Rated Grid Voltage 380/400V or 220/230V
Rated Output Current 23.8 A
Max DC Input Voltage 1,000 V - 1,100 V
MPPT Voltage Range 160 - 1000 V
Number of MPPT Trackers 2
Max Input Current 32 A
Max Efficiency 98.5%
Protection Rating IP66
Dimensions (W × H × D) 310 × 563 × 219 mm
Weight 18.8 - 19.6 kg
Cooling Method Natural convection (fanless)
Operating Temperature -25°C ~ +60°C
Topology Transformerless
Night Consumption <1 W
Communication Interfaces RS485; Optional: Wi-Fi, GPRS

Powerbox Pro Battery Specifications

Parameter Specification
Product Model Powerbox Pro
Nominal Energy 10.24 kWh
Nominal Capacity 200 Ah
Nominal Voltage 51.2 V
Operating Voltage Range 44.8 - 57.6 V
Battery Type LiFePO₄ (Lithium Iron Phosphate)
Nominal Power 5.12 kW
Peak Power 10.24 kW
Max Continuous Charge/Discharge Current 100 A
Recommended C-Rate 0.5 C
Recommended Depth of Discharge 85-90%
Cycle Life ≥6,000 cycles
Operating Temperature (Discharge) -20°C ~ 55°C
Protection Rating IP65
Communication Interfaces CAN, RS485, RS232
Dimensions (W × D × H) 555 × 210 × 928 mm
Weight 99.3 - 103 kg
Maximum Parallel Units Up to 50 units (512kWh)
