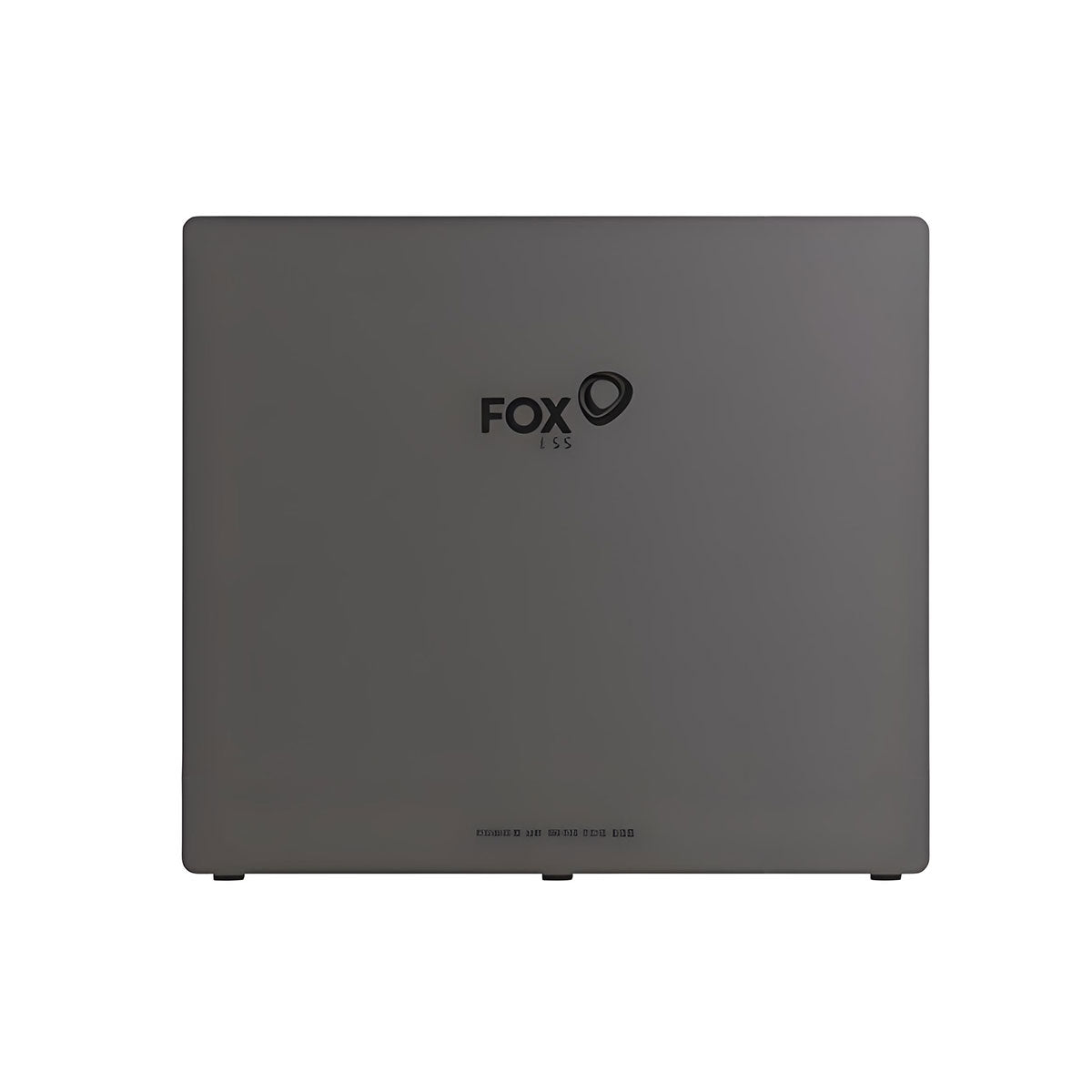

FoxESS EP11 HV Energy Storage
Interested in the EP11 battery system? Leave your details and our team at Ople will contact you with pricing, rebate information and a tailored solution. Name * Email * Contact...
- $15,450.00
$16,990.00- $15,450.00
- Unit price
- per
10 customers are viewing this product
Description
xInterested in the EP11 battery system?
Leave your details and our team at Ople will contact you with pricing, rebate information and a tailored solution.
The EP11 is a high-performance, scalable high-voltage battery storage system designed for modern homes and small commercial applications. It offers maximum flexibility for a broad range of energy storage scenarios. Additional battery modules can be installed in parallel, allowing you to expand up to a total usable capacity of 41.6 kWh (4 units).
Key Features
- Scalable up to 41.6 kWh (Max.4 units in parallel)
- 90% Depth of Discharge (DoD) for excellent usable capacity
- Flexible floor or wall mounting options
- Compact design for easy and fast installation
- IP65 protection level for indoor and outdoor use
- High voltage and high efficiency for better system performance
Specifications
| Item | Value |
|---|---|
| Electrical Characteristics | |
| Compatible PCS | All series of H1, KH, H3, H3-Pro, US |
| Battery Type | LiFePO4 prismatic cell |
| Nominal Energy [kWh] | 10.36 |
| Nominal Voltage [V] | 384 |
| Operating Voltage [V] | 348 – 438 |
| Max. Charge/Discharge Current [A] | 27 |
| Recommended Charge Current [A] | 13.5 |
| Peak Discharge Current [A] | 65 @ 60 s |
| Peak Charge Current [A] | 32.4 @ 5 s |
| Round-Trip Efficiency [%] | ≥ 95% |
| Depth of Discharge [%] | 90% |
| Cycle Life | ≥ 24,000 cycles |
| Communication | CAN |
| Display | LED × 5 |
| Operating Conditions | |
| Installation Location | Indoor / Outdoor |
| Operating Temperature [°C] | Charge: 0 – 55 |
| Storage / Discharge Temperature [°C] | −10 – 55 |
| Cooling Method | Natural convection |
| Humidity [%] | 5 – 95 (non-condensing) |
| Altitude [m] | Max. 2,000 |
| Mechanical Characteristics | |
| Product Size (W × H × D) | 710 × 625 × 149 mm |
| Weight [kg] | 99 ± 2 |
| Certificates | |
| Safety | IEC 62619 |
| EMC | EN IEC 61000-6-1 / 61000-6-3 |
| Transportation | UN38.3 |
| Ingress Protection | IP65 |
