System Overview

The EP11 is a high-performance, scalable high-voltage battery storage system designed for modern homes and small commercial applications. It offers maximum flexibility for a broad range of energy storage scenarios.

Key Features

Scalable up to 41.6 kWh Max.4 units in parallel
90% Depth of Discharge (DoD) for excellent usable capacity
Flexible floor or wall mounting options
Compact design for easy and fast installation
IP65 protection level for indoor and outdoor use
High voltage and high efficiency for better system performance

Technical Specifications

Electrical Characteristics

Compatible PCSAll series of H1, KH, H3, H3-Pro, US

Battery TypeLiFePO₄ prismatic cell

Nominal Energy [kWh]10.36

Nominal Voltage [V]384

Operating Voltage [V]348 – 438

Max. Charge/Discharge Current [A]27

Recommended Charge Current [A]13.5

Peak Discharge Current [A]65 @ 60 s

Peak Charge Current [A]32.4 @ 5 s

Round-Trip Efficiency [%]≥ 95%

Depth of Discharge [%]90%

Cycle Life≥ 24,000 cycles

CommunicationCAN

DisplayLED × 5

Operating Conditions

Installation LocationIndoor / Outdoor

Operating Temperature [°C]Charge: 0 – 55

Storage / Discharge Temperature [°C]−10 – 55

Cooling MethodNatural convection

Humidity [%]5 – 95 (non-condensing)

Altitude [m]Max. 2,000

Mechanical Characteristics

Product Size (W × H × D)710 × 625 × 149 mm

Weight [kg]99 ± 2

Certificates

SafetyIEC 62619

EMCEN IEC 61000-6-1 / 61000-6-3

TransportationUN38.3

Ingress ProtectionIP65

Package Information

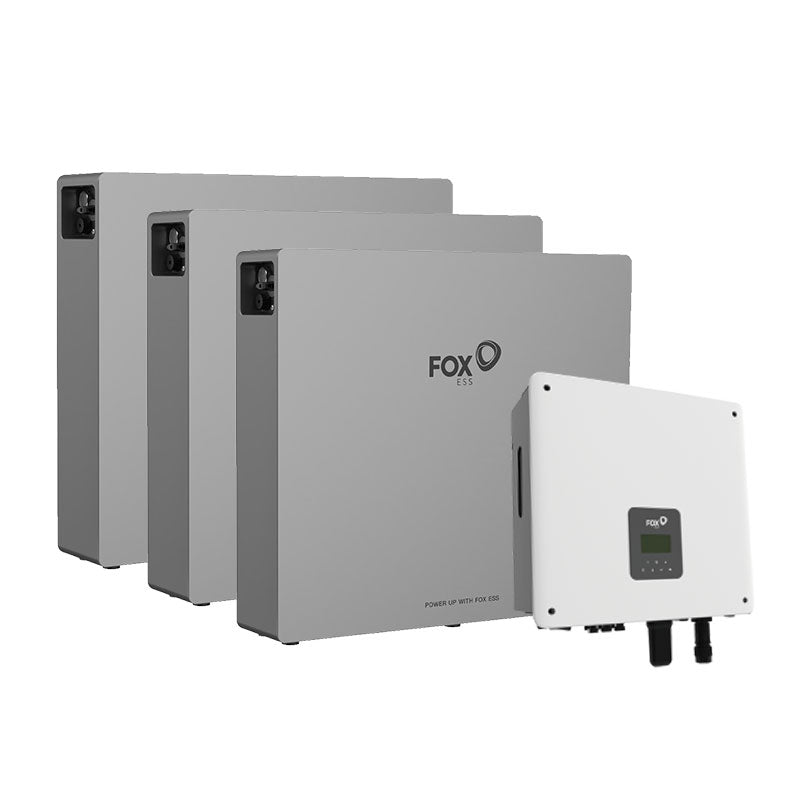

Fox ESS 5kW 1P H1-G2 41.44kWh BESS (EP11 Package 3) Includes:

1 × Fox ESS 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2 DC WIFI-CT AU)
3 × EP11 High Voltage Battery Modules (10.36kWh each, total 31.08kWh)
1 × Fox ESS High Voltage Junction Box – 50A
