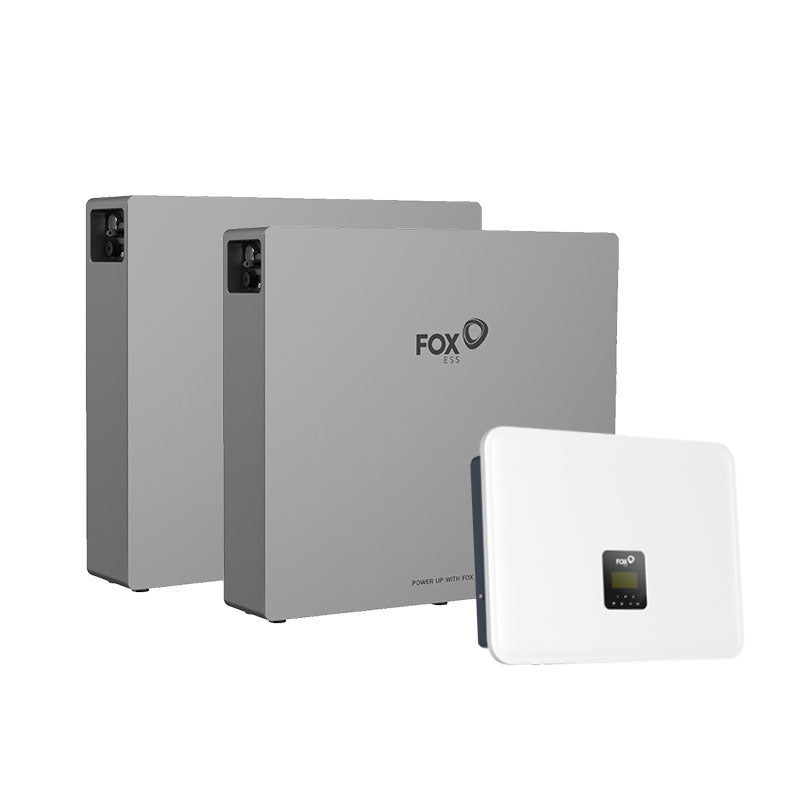

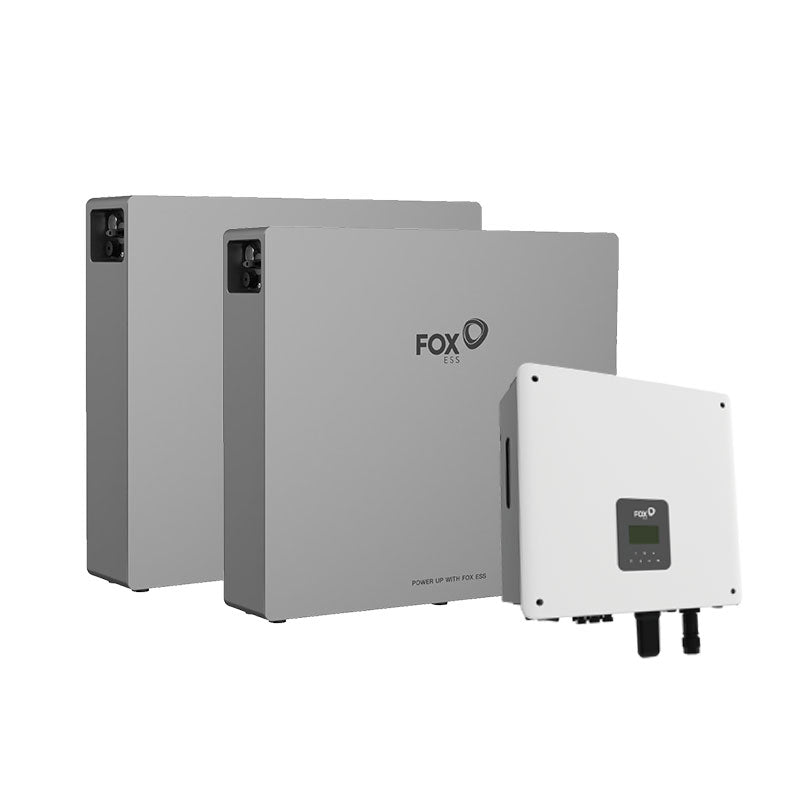

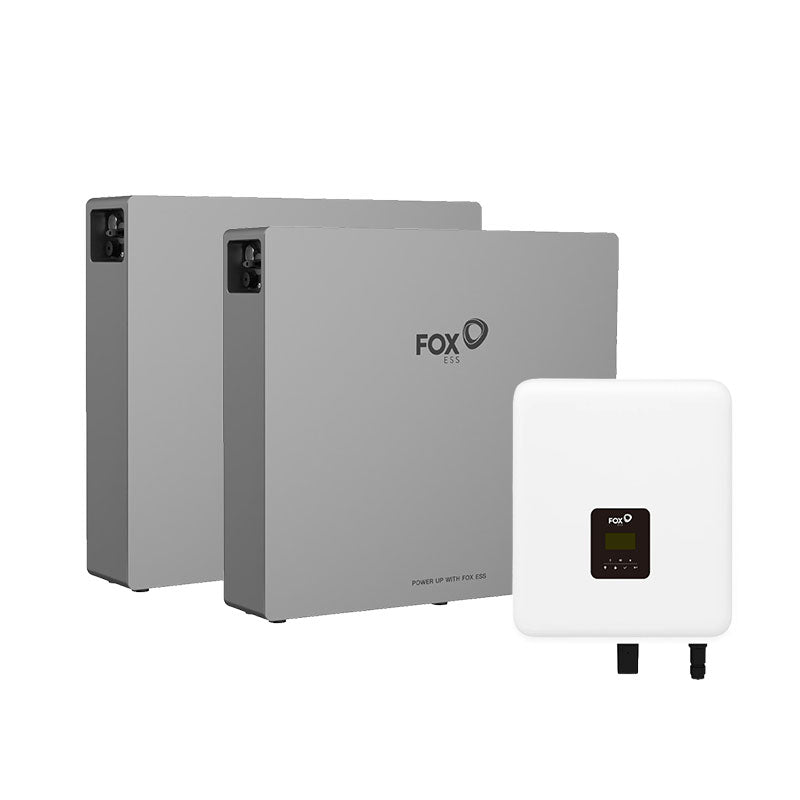

FoxESS 20.72kWh EP11 HV Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)
- $9,490.00
- $9,490.00
- Unit price
- per
⚡ Get an Installation Quote
Solar & battery assessment • 1–2 mins to submit
10 customers are viewing this product
Vendor: Ople Appliances
FoxESS 20.72kWh EP11 HV Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)
$9,490.00
Vendor: Ople Appliances
FoxESS 20.72kWh EP11 HV Energy Storage & 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)
$9,490.00
Description
x
EP11 High-Voltage Battery System
A high-performance, scalable energy storage solution for modern homes and small commercial applications
System Overview
The EP11 is a high-performance, scalable high-voltage battery storage system designed for modern homes and small commercial applications. It offers maximum flexibility for a broad range of energy storage scenarios.
Key Features
-
Scalable up to 41.6 kWh Max.4 units in parallel
-
90% Depth of Discharge (DoD) for excellent usable capacity
-
Flexible floor or wall mounting options
-
Compact design for easy and fast installation
-
IP65 protection level for indoor and outdoor use
-
High voltage and high efficiency for better system performance
Technical Specifications
Electrical Characteristics
Compatible PCSAll series of H1, KH, H3, H3-Pro, US
Battery TypeLiFePO₄ prismatic cell
Nominal Energy [kWh]10.36
Nominal Voltage [V]384
Operating Voltage [V]348 – 438
Max. Charge/Discharge Current [A]27
Recommended Charge Current [A]13.5
Peak Discharge Current [A]65 @ 60 s
Peak Charge Current [A]32.4 @ 5 s
Round-Trip Efficiency [%]≥ 95%
Depth of Discharge [%]90%
Cycle Life≥ 24,000 cycles
CommunicationCAN
DisplayLED × 5
Operating Conditions
Installation LocationIndoor / Outdoor
Operating Temperature [°C]Charge: 0 – 55
Storage / Discharge Temperature [°C]−10 – 55
Cooling MethodNatural convection
Humidity [%]5 – 95 (non-condensing)
Altitude [m]Max. 2,000
Mechanical Characteristics
Product Size (W × H × D)710 × 625 × 149 mm
Weight [kg]99 ± 2
Certificates
SafetyIEC 62619
EMCEN IEC 61000-6-1 / 61000-6-3
TransportationUN38.3
Ingress ProtectionIP65
Package Information
Fox ESS 5kW 1P 20.72kWh BESS (EP11 Package 3) Includes:
- 1 × Fox ESS 5kW Single Phase Hybrid Inverter (H1-5.0-E-G2)
- 2 × EP11 High Voltage Battery Modules (10.36kWh each, total 20.72kWh)
- 1 × Fox ESS High Voltage Junction Box – 50A
