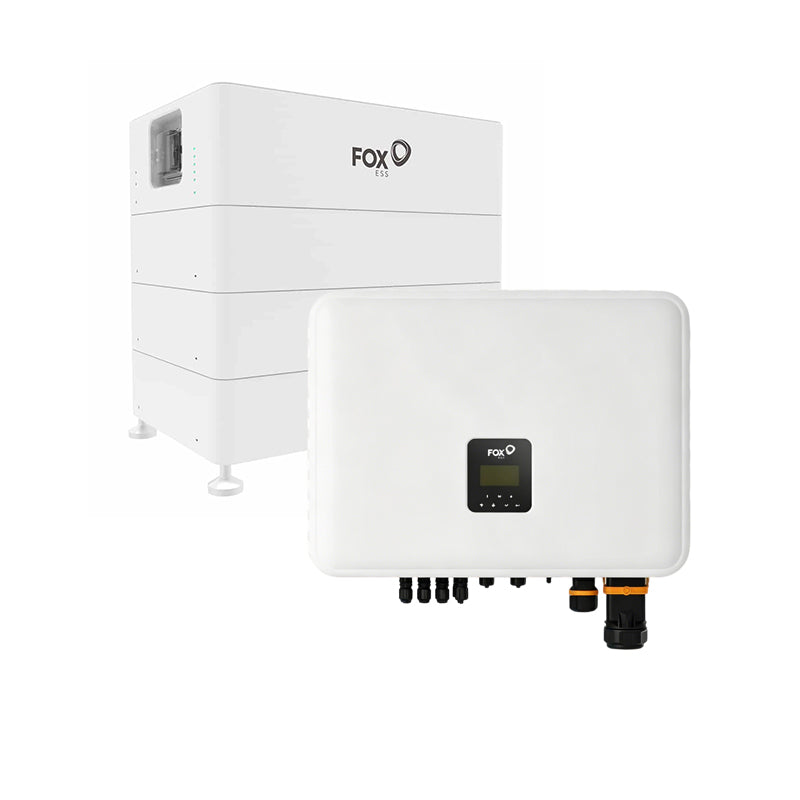

FoxESS 18.64kWh EQ4800 Energy Storage & 10kW Three Phase Hybrid Inverter (H3 10KW inverter)
Description The FoxESS 10kW Three Phase Hybrid Inverter & 18.64kWh High-Voltage Battery bundle is a high-efficiency energy storage solution designed for three-phase residential and light commercial applications. This bundle includes a Fox H3-10.0-E three-phase...
Vendor:
Ople Appliances
Availability:
In Stock
- $5,899.00
- $5,899.00
- Unit price
- per
10 customers are viewing this product
Vendor: Ople Appliances
FoxESS 18.64kWh EQ4800 Energy Storage & 10kW Three Phase Hybrid Inverter (H3 10KW inverter)
$5,899.00
Vendor: Ople Appliances
FoxESS 18.64kWh EQ4800 Energy Storage & 10kW Three Phase Hybrid Inverter (H3 10KW inverter)
$5,899.00
Description
xDescription
The FoxESS 10kW Three Phase Hybrid Inverter & 18.64kWh High-Voltage Battery bundle is a high-efficiency energy storage solution designed for three-phase residential and light commercial applications.
This bundle includes a Fox H3-10.0-E three-phase hybrid inverter and a set of EQ4800 series high-voltage stackable batteries. The H3 series inverter is a high-performance three-phase inverter featuring a 1000V high PV input voltage and maximum efficiency of 98.0%, significantly increasing PV self-consumption. The EQ4800 battery adopts safe Lithium Iron Phosphate (LiFePO₄) cells and supports modular expansion with a round-trip efficiency exceeding 95%. This bundle also provides EPS (Emergency Power Supply) functionality, automatically powering three-phase critical loads during grid outages to ensure 24/7 energy security.
Key Features
Inverter Features
- Three-Phase Output: Supports 380V/400V/415V three-phase grids, suitable for three-phase residential homes and commercial sites.
- 2 MPPTs: Equipped with 2 independent MPPT trackers with MPPT voltage range of 160–950V, allowing connection of PV arrays with different orientations.
- 1000V High PV Input Voltage: Supports higher PV input voltage, reducing cable losses and improving system efficiency.
- High Conversion Efficiency: Maximum efficiency 98.0%, European efficiency 97.3%, MPPT tracking efficiency 99.9%.
- High Battery Voltage Range: Battery voltage range of 180–600V, supporting high-voltage battery systems to reduce current losses.
- EPS Backup Power: Supports 10kVA rated EPS output with <20ms switching time, ensuring continuous operation of three-phase critical loads.
- Smart Monitoring: Standard with WiFi, LAN, optional 4G, RS485, USB communication ports, supporting FoxESS Cloud mobile app and web portal for real-time monitoring.
- High Protection Rating: IP65 rated, operates in a wide temperature range of -25°C to +60°C, suitable for both indoor and outdoor installation.
- Active Cooling: The H3-10.0-E features a fan-cooled active cooling system, ensuring stable operation in high-temperature environments.
- Included Meter: Comes with a DTSU666 meter for easy installation and energy management.
Battery Features
- LiFePO₄ Technology: High thermal stability and long cycle life, certified to IEC 62619.
- Modular & Expandable: The 18.64kWh configuration consists of 1 master module + 3 slave modules, expandable up to 9 modules (41.93kWh total) .
- Deep Discharge Capability: Supports 90% Depth of Discharge (DoD) to optimise usable energy.
- High Efficiency: Round-trip battery efficiency >95%.
- High Voltage Design: Nominal voltage of 179.2V, operating voltage range of 81.2–463.7V, enabling more efficient charge/discharge.
- Easy Installation: Plug-and-play design saves installation time.
Technical Specifications
System Overview
| Parameter | Specification |
|---|---|
| Product Type | Three-Phase High-Voltage Hybrid Storage System |
| Application | Three-phase residential / light commercial PV self-consumption, backup power, peak/off-peak arbitrage |
| Inverter Model | Fox H3-10.0-E |
| Battery Model | Fox ESS EQ4800-L4 (4.66kWh modules × 4) |
Fox H3-10.0-E Inverter Specifications
| Parameter Category | Details |
|---|---|
| PV Input | |
| Max. Input Power | String A: 8000W / String B: 5000W |
| Max. Input Voltage | 1000V |
| Startup Voltage | 160V |
| Nominal Input Voltage | 720V |
| MPPT Voltage Range | 160 ~ 950V |
| Max. Input Current | String A: 26A / String B: 14A |
| Number of MPPTs | 2 |
| Strings per MPPT | String A: 2 / String B: 1 |
| Battery Interface | |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Battery Voltage Range | 180 ~ 600V (min. operating voltage 150V) |
| Max. Charge/Discharge Current | 26A |
| Communication Interface | CAN (to inverter), RS485 (BMS upgrade) |
| AC Output (Grid-Tied) | |
| Rated Output Power | 10000W |
| Max. Apparent Output Power | 11000VA |
| Rated Output Current (per phase) | 14.5A |
| Max. Output Current (per phase) | 17.6A |
| Rated Grid Voltage | 3L/N/PE 380/220V; 400/230V; 415/240V |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | 1 (adjustable 0.8 leading ~ 0.8 lagging) |
| Total Harmonic Distortion (THDi) | <3% (at rated power) |
| EPS (Emergency Power Supply) | |
| Max. Output Apparent Power | 10000VA |
| Peak Output Apparent Power (60s) | 15000VA |
| Max. Current (per phase) | 14.5A |
| Rated Output Voltage | 3L/N/PE 400/230V |
| Switching Time | <20ms |
| Efficiency | |
| Max. Efficiency | 98.0% |
| European Efficiency | 97.3% |
| Battery Charging Efficiency (PV → Battery) | 98.5% |
| Battery Discharge Efficiency (Battery → AC) | 97.0% |
| Protection & General | |
| Protection Rating | IP65 |
| Operating Temperature Range | -25°C ~ +60°C (derating above +45°C) |
| Cooling Method | Fan cooling |
| Noise Level | 45dB |
| Standby Self-Consumption | <15W |
| Dimensions (W × H × D) | 449 × 519 × 198 mm |
| Weight | 28kg |
| Mounting Method | Wall-mounted |
| Topology | Transformerless |
| Max. Operating Altitude | 2000m |
| Humidity | 0~100% (non-condensing) |
| Monitoring Module | WiFi, LAN, 4G, GPRS (optional) |
| Communication Interfaces | 2×RS485, DRM, Ripple Control, USB |
| Display | LCD, APP, Web Portal |
| Safety Standards | EN 62109-1/2, EN 62477-1 |
| EMC Standards | IEC 61000-6-1/2/3/4 |
| Grid Standards | EN50549-1, C10/11, VDE-AR-N 4105, G98, CEI 0-21 |
| Warranty | 10 years |
Fox ESS EQ4800-L4 Battery Specifications (18.64kWh)
| Parameter Category | Details |
|---|---|
| Configuration | 1×EQ4800-M (Master) + 3×EQ4800-S (Slave) |
| Battery Technology | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Energy | 18.64 kWh |
| Usable Energy | ~16.77 kWh (90% DoD) |
| Nominal Voltage | 179.2 V |
| Operating Voltage Range | 81.2 ~ 463.7 V |
| Nominal Capacity | 104 Ah |
| Nominal Discharge Current | 30 A |
| Max. Charge/Discharge Current | 50 A |
| Round-Trip Efficiency | >95% |
| Depth of Discharge (DoD) | 90% |
| Communication Protocol | CAN / RS485 |
| Expandability | Up to 9 modules in series (1 master + 8 slaves), max capacity 41.93 kWh |
| Minimum Configuration | At least 2 modules (1 master + 1 slave) |
| Energy per Module | 4.66 kWh |
| Dimensions (W × H × D) | 570 × 662 × 380 mm |
| Weight | 161.5 kg |
| Protection Rating | IP65 |
| Mounting Method | Floor standing / Stackable |
| Charging Temperature | 0 ~ +55°C |
| Discharging Temperature | -10 ~ +55°C |
| Storage Temperature | -10 ~ +35°C |
| Max. Operating Altitude | 2000 m |
| Cooling Method | Natural Convection |
| Warranty | 10 years |
| Safety Certification | IEC 62619 |
