FoxESS 18.64kWh EQ4800 Energy Storage & 10kW Single Phase Hybrid Inverter (KH 10KW inverter)
$5,799.00
Vendor: Ople Appliances
FoxESS 18.64kWh EQ4800 Energy Storage & 10kW Single Phase Hybrid Inverter (KH 10KW inverter)
$5,799.00
Description
xDescription
The FoxESS 10kW Hybrid Inverter & 18.64kWh High-Voltage Battery bundle is a high-performance energy storage solution designed for large single-phase residential homes.

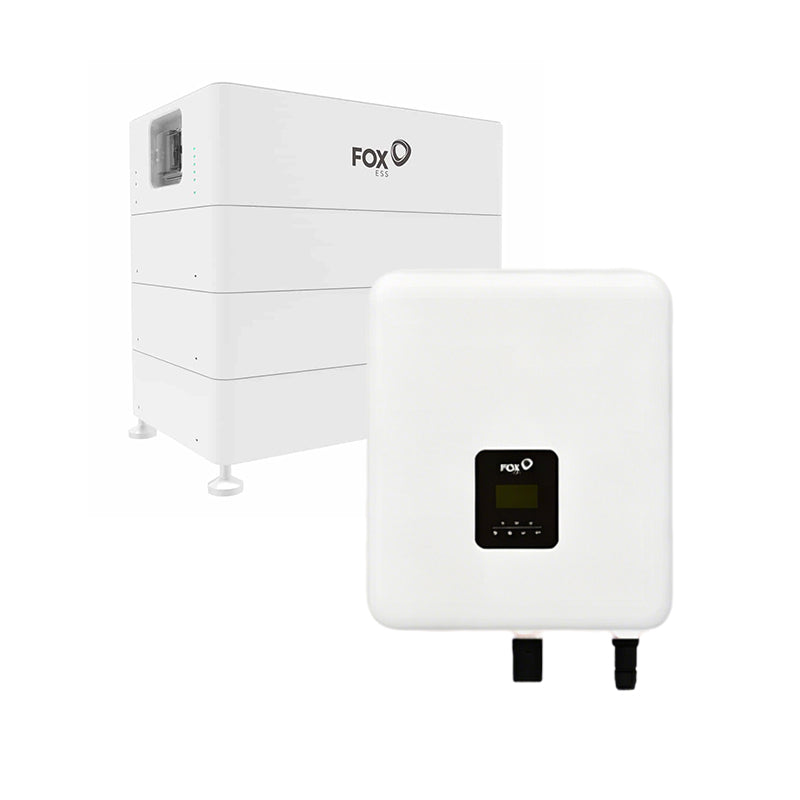

This bundle includes a Fox KH10 single-phase hybrid inverter and a set of EQ4800 series high-voltage stackable batteries. The KH10 inverter features 4 MPPTs — a leading configuration in its class — effectively addressing complex roof orientations and shading challenges. The EQ4800 battery adopts safe Lithium Iron Phosphate (LiFePO₄) cells and supports modular expansion with system efficiency exceeding 95%. This bundle significantly increases PV self-consumption while providing EPS (Emergency Power Supply) functionality, automatically powering critical home loads during grid outages to ensure 24/7 energy security.
Key Features
Inverter Features
- 4 MPPTs: The KH10 inverter is equipped with 4 independent MPPT trackers, allowing connection of up to 4 PV arrays with different orientations to maximise energy harvest from complex rooftops.
- High Efficiency: Maximum efficiency reaches 97.8%, with MPPT tracking efficiency of 99.9%.
- EPS Backup Power: Supports 10kW rated EPS output with <10ms switching time during grid outages, ensuring continuous operation of critical home appliances.
- Parallel Expansion: Supports up to 10 units in parallel for flexible system capacity scaling.
- High Protection Rating: IP65 rated, operates in a wide temperature range of -25°C to +60°C, suitable for both indoor and outdoor installation.
- Smart Monitoring: Standard with WiFi/LAN/4G communication ports, supports FoxESS Cloud mobile app and web portal for real-time monitoring.
- Included Accessories: CT clamp and meter are included in the box for easy installation and measurement.
Battery Features
- LiFePO₄ Technology: High thermal stability and long cycle life.
- Modular & Expandable: The 18.64kWh configuration consists of 1 master module + 3 slave modules, expandable up to 9 modules (41.93kWh total) .
- Deep Discharge Capability: Supports 100% Depth of Discharge (DoD) to fully utilise stored energy.
- High Efficiency: Round-trip battery efficiency >95%.
- High Voltage Design: Operating voltage range of 162.4–206.0V, enabling more efficient charge/discharge.
- Wide Temperature Adaptability: Charging temperature 0~55°C, discharging temperature -10~55°C.
Technical Specifications
System Overview
| Parameter | Specification |
|---|---|
| Product Type | Single-Phase High-Voltage Hybrid Storage System |
| Application | Large residential PV self-consumption, backup power, peak/off-peak arbitrage |
| Inverter Model | Fox KH10 (KH1-10.0) |
| Battery Model | Fox ESS EQ4800-L4 (4.66kWh modules × 4) |
Fox KH10 Inverter Specifications
| Parameter Category | Details |
|---|---|
| Battery Interface | |
| Battery Type | High-Voltage Li-ion |
| Battery Voltage Range | 85 ~ 480 V |
| Recommended Battery Voltage | 300 V |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 50 A |
| Communication Interface | CAN / RS485 |
| PV Input | |
| Max. PV Input Power | 15000 W |
| Max. Input Voltage | 600 V |
| MPPT Voltage Range | 80 ~ 500 V |
| Startup Voltage | 75 V |
| Max. Input Current | 20A × 4 strings |
| Number of MPPTs | 4 |
| Strings per MPPT | 1 |
| AC Output (Grid-Tied) | |
| Rated Output Power | 10000 VA |
| Max. Apparent Power | 10000 VA |
| Rated Output Voltage | 220/230/240 V (Single Phase) |
| Rated Frequency | 50/60 Hz |
| Rated Output Current | 43.5 A |
| Power Factor | 0.8 leading ~ 0.8 lagging |
| EPS (Emergency Power Supply) | |
| Rated Output Power | 10000 VA |
| Max. Peak Power (60s) | 12000 W |
| Switching Time | <10 ms |
| Rated Output Voltage | 220/230/240 V (50/60 Hz) |
| Efficiency | |
| Max. Efficiency | 97.8% |
| European Efficiency | 97.4% |
| MPPT Efficiency | 99.9% |
| Battery Charging Efficiency (PV → Battery) | 98.5% |
| Battery Discharge Efficiency (Battery → AC) | 97.0% |
| Protection & General | |
| Protection Rating | IP65 |
| Operating Temperature | -25°C ~ +60°C (derating above +45°C) |
| Cooling Method | Natural Convection |
| Noise Level | <30 dB |
| Self-Consumption | <15 W |
| Dimensions (W × H × D) | 450 × 527 × 208 mm |
| Weight | 29 kg |
| Safety Standards | IEC62109-1/2, IEC 62477-1 |
| Grid Standards | G99, EN50549, NRS 097-2-1 |
Fox ESS EQ4800-L4 Battery Specifications (18.64kWh)
| Parameter Category | Details |
|---|---|
| Battery Technology | Lithium Iron Phosphate (LiFePO₄) |
| Configuration | 1×EQ4800-M (Master) + 3×EQ4800-S (Slave) |
| Nominal Energy | 18.64 kWh |
| Usable Energy | 18.64 kWh (100% DoD) |
| Nominal Voltage | 179.2 V |
| Operating Voltage Range | 162.4 ~ 206.0 V |
| Nominal Capacity | 104 Ah |
| Nominal Charge/Discharge Current | 30 A |
| Max. Charge/Discharge Current | 50 A |
| Peak Discharge Current (60s) | 65 A |
| Round-Trip Efficiency | >95% |
| Depth of Discharge (DoD) | 100% |
| Communication Protocol | CAN |
| Expandability | Up to 9 modules in series (41.93 kWh) |
| Dimensions (W × H × D) | 570 × 662 × 380 mm |
| Weight | 161.5 kg |
| Protection Rating | IP65 |
| Mounting Method | Floor mounted |
| Operating Temperature (Charging) | 0 ~ 55°C |
| Operating Temperature (Discharging) | -10 ~ 55°C |
| Storage Temperature | -10 ~ 35°C |
| Warranty | 10 Years |
| Safety Certification | IEC 62619 |
