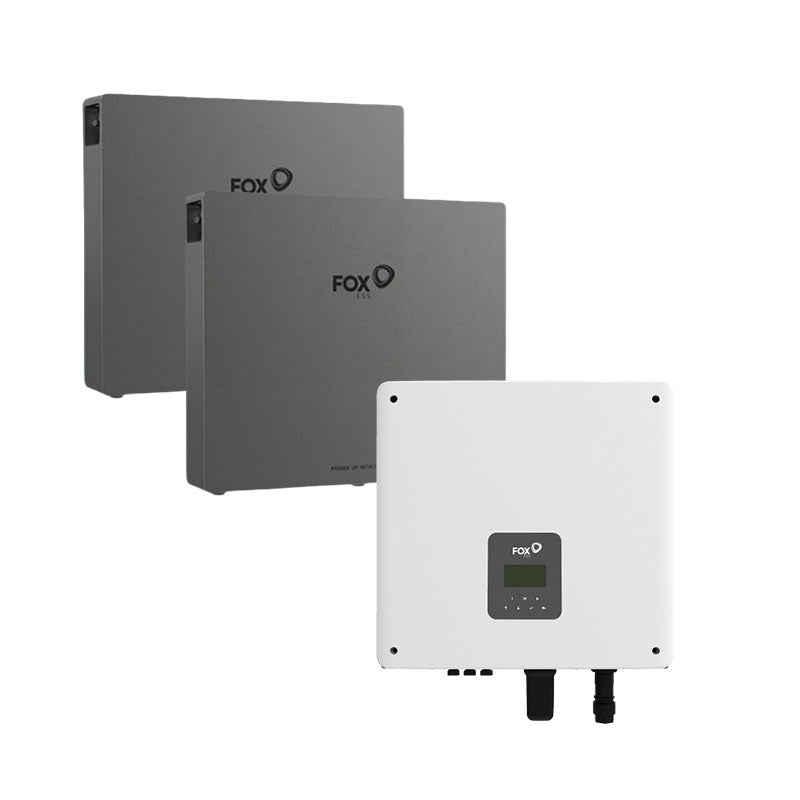

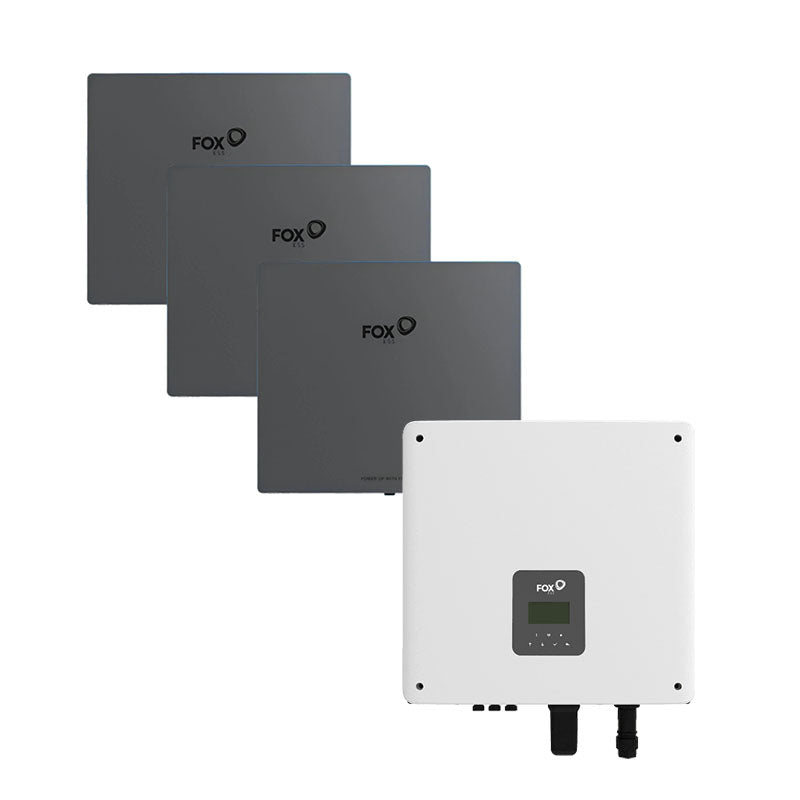

The Fox ESS H1-5.0-E-G2 single phase hybrid inverter combined with the EP11 high-voltage battery storage system delivers a scalable energy solution for residential applications.

The H1 series features 2 MPPT trackers, IP65 protection for outdoor installation, and natural cooling for quiet operation .

The EP11 is a high-performance, scalable battery storage system using LiFePO₄ technology, designed specifically for residential photovoltaic systems . Additional batteries can be installed in parallel allowing for a maximum storage capacity of 41.6kWh .

Key Features

Inverter - H1-5.0-E-G2-1P

  • 2 MPPT trackers with 2 string inputs

  • Built-in EPS (Emergency Power Supply) function for backup during grid outages

  • IP65 rated for outdoor or indoor installation

  • Natural cooling design - no noisy fans

  • WiFi dongle included; LAN and 4G dongles also available

  • CT clamp supplied

Battery - EP11 (10.36kWh)

  • Single module capacity 10.36kWh

  • Lithium Iron Phosphate (LiFePO₄) battery chemistry

  • 90% depth of discharge

  • Floor or wall mounting options

  • IP65 protection level for indoor or outdoor installation

  • Scalable up to 41.6kWh with additional modules

Specifications

H1-5.0-E-G2 Inverter Specifications

Parameter Specification
Rated AC Output Power 5,000 W
Max AC Output Power 5,000 W
Rated AC Output Current 22.7 A
Max AC Output Current 25.0 A
Number of Phases Single Phase
Max DC Input Power 7,500 W - 10,000 W*
Max DC Input Voltage 600 V
Start-up Voltage 75 V
MPPT Voltage Range 80 - 500 V (80 - 550 V)
Number of MPPT Trackers 2
Number of String Inputs 2
Max Input Current per MPPT 16 A
Max Short Circuit Current 32 A
Max Efficiency 96.30%
IP Rating IP65
Dimensions (L × W × H) 434 × 418 × 185 mm
Weight 22 kg
Cooling Method Natural (fanless)
Operating Temperature -25°C ~ +60°C
Communication Interfaces RS485, CAN, WiFi (standard), LAN/4G (optional), DRM, USB
Warranty 5 years (extendable to 10 years)

EP11 Battery Specifications

Parameter Specification
Nominal Energy 10.36 kWh
Nominal Capacity 27 Ah
Nominal Voltage 384 V
Voltage Range 348 - 438 V
Battery Type Lithium Iron Phosphate (LiFePO₄)
Round-Trip Efficiency >95%
Depth of Discharge 90%
Max Continuous Charge/Discharge Current 27 A
Recommended Charge Current 13.5 A
Peak Discharge Current (60 sec) 65 A
Cycle Life ≥4000 cycles @ 25°C
Operating Temperature (Charge) 0°C ~ 55°C
Operating Temperature (Discharge) -10°C ~ 55°C
Storage Temperature 0°C ~ 35°C
IP Rating IP65
Communication Interface CAN
Weight 99 kg ±2 kg
Dimensions (L × W × H) 710 × 625 × 147 mm
Max Altitude ≤3000 m
Max Parallel Modules 4 (max 41.6 kWh)
